CLIQ® Cylinder

The electromechanical CLIQ^® cylinder is used in combination with the MTL^™CLIQ^® key enabling the collection and storage of information about when the cylinder has been accessed and with which key. In addition, the cylinder stores a list of authorized and unauthorized MTL^™CLIQ^® keys to ensure only enabled keys have access.

Applications

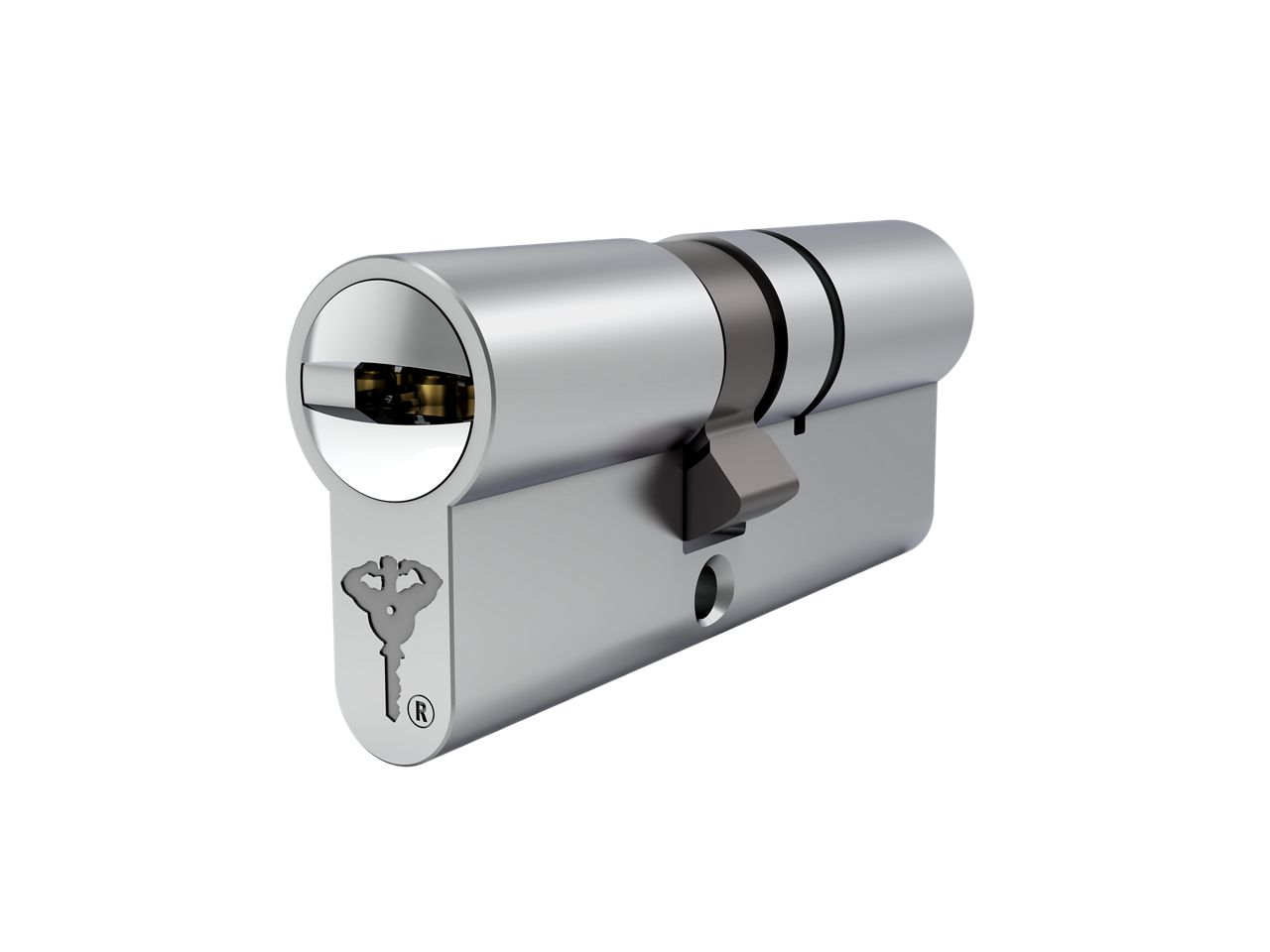

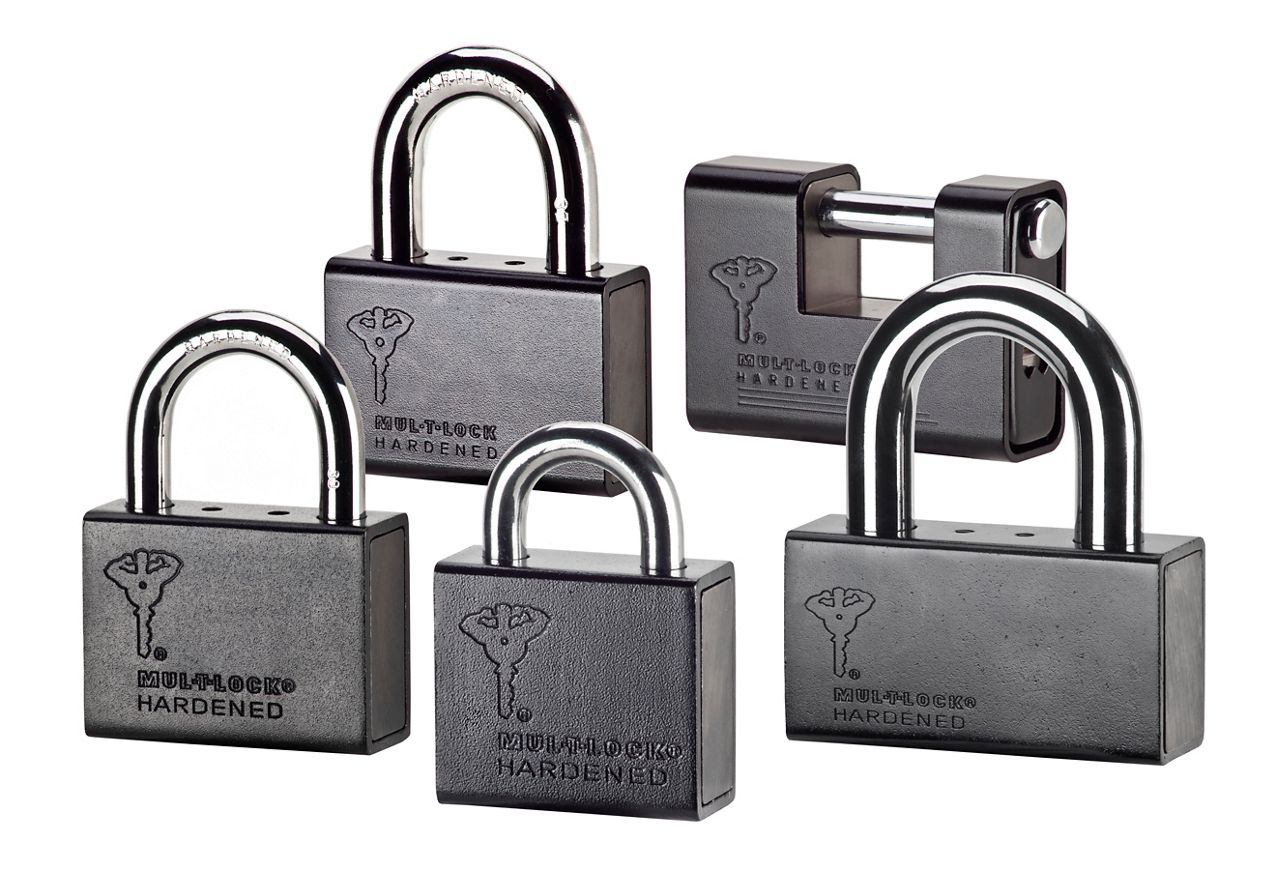

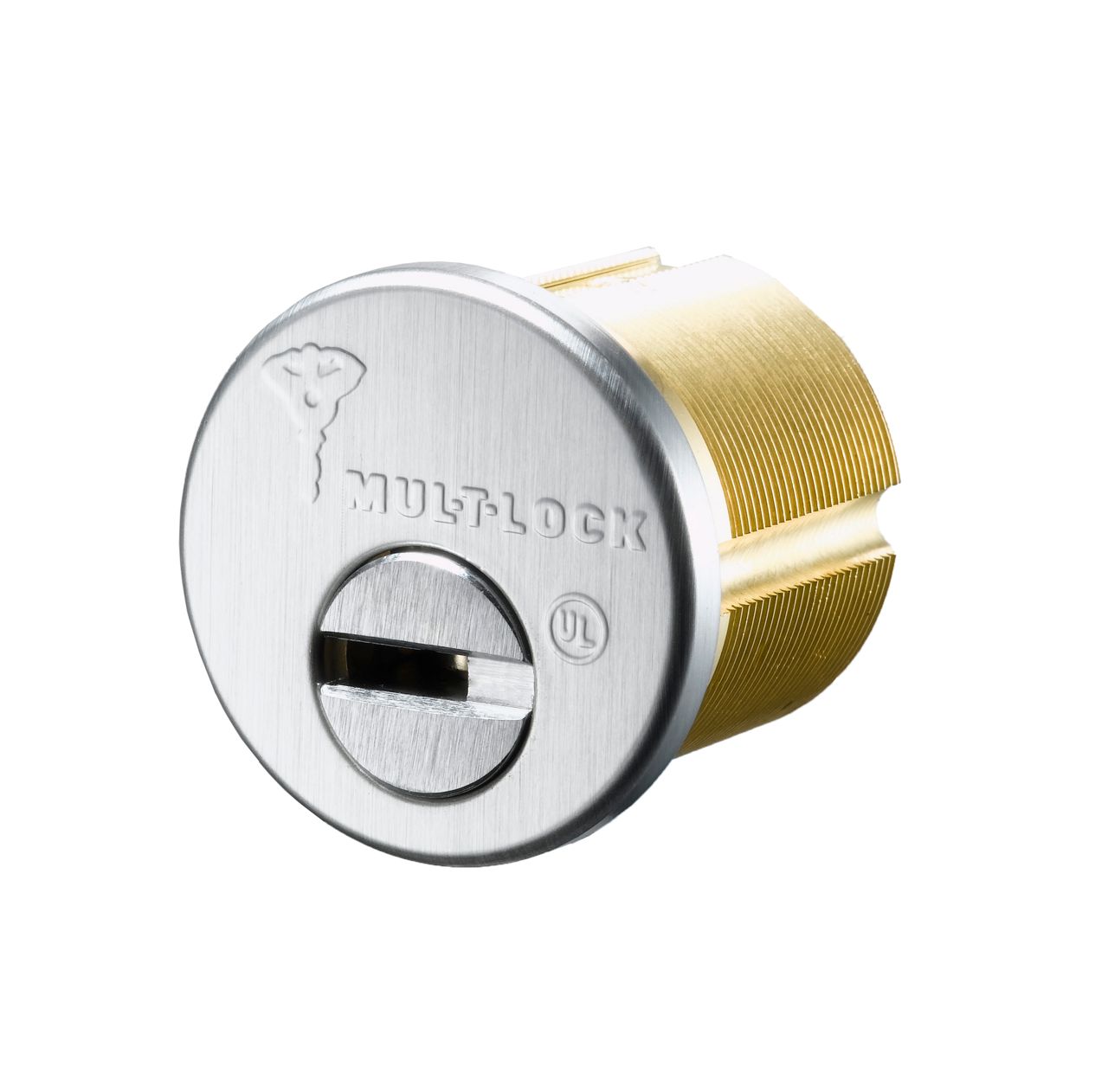

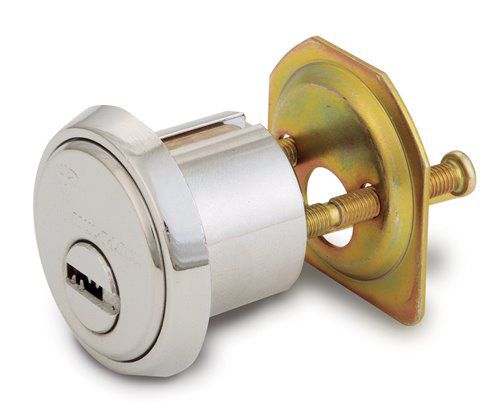

The CLIQ^® cylinder is based on Mul-T-Lock's High-Security mechanical platforms MTL^™600 and MTL^™800. It is available in a wide range of cylinder applications including Euro (double or single), rim, mortise, Kik, padlocks, switch cylinder, and more.

Features

• Audit trail standard memory: 100 events
• Audit trail extended memory: 1000 events

Specifications

• IP54 (IPx8 with anti-water coating protection)
• Temperature range: -25°C - 85°C
• Encrypted (3DES) communication between cylinder and key/c-key
• Available in a variety of finishes
• Minimum length: 33 mm (Euro model)
• Power supplied via the MTL^™CLIQ^® key's embedded battery
