Mortise Locks

Application

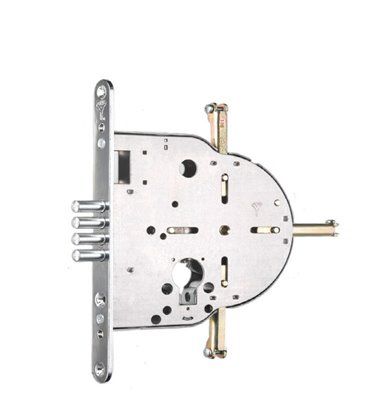

Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action.

Options
Standard backset: 65 mm
Special order backsets: 75 & 85 mm
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Can be assembled with SH300 High Security hardware

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)

Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action
Additional travel for latch action
Right- or left-hand applications

Options
Standard backset: 65 mm
Special order backsets: 75 & 85 mm
Other backsets avalible only with Ø10 mm bolts
Optional 8'' front band to fit American hollow core metal doors
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Can be assembled with SH300 High Security hardware
Model 235 available with ØD = 12.7 mm

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)

Standards
ISI technical specification 196; EN12209

Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action
Additional travel for latch action
Right- or left-hand application

Options
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Fixed outside handle

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)
Cylinder protector: hardened steel

Additional features
Patented 18 mm Double D shaped bolts allow installation in narrow frames, and enables the use of front plate (22 mm width) to fit regular steel door types.

Standards
ISI technical specification 196; EN12209

Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action.

Options
Left-hand model 231
Right-hand model 232
Hardware colors: White, Brown, Shiny brass, Nickel chrome

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)
Cylinder protector: hardened steel

Application
A heavy duty multipoint lock for armored doors.

Operation
Operated by Euro profile cylinder
When lock is closed, latch can not be withdrawn using the handle

Features
3-point lock
Gear-based mechanism
Latch functionality
Right- or left-hand installation

Options
4 bolts (Ø18 mm) for standard 28 mm bolt spacing (A)
3 bolts for 37 mm bolt spacing (A)

Specifications
Handle operation
Latch: Ø20 mm
Backset: 65 mm
Bolt throw: 30 mm
Lever stroke: 20 mm
Bolt protrusion: 3,13 mm (B)
Variety of key lenghts

Notes
For ordering information see the Mul-T-Lock Italy Catalogue

Application
A heavy duty multipoint lock for steel doors.

Features
4 smart key-turns
41.5 mm bolt throw
15 locking bolts
Geometrical locking
Double cylinder locking
Cogwheel central locking mechanism
Dead-bolt latch when locked
Operated by Euro profile cam cylinders
Right- or left-hand installation

Options
Lockset includes: Central lock; Side mechanisms; Rods; Security escutcheons; Hardware; Counter strikes; Installation instructions.

Specifications
Handle operation
Latch Ø20 mm
Backseat: 65 mm
Bolt throw: 41.5 mm
Minimum door height - 1950 mm
Maximum door height - 2120 mm

Finishes
Bright brass; Nickel satin; Nickel chrome

Application
A heavy duty multipoint lock for armored doors.

Operation
Operated by Euro profile cylinder
When lock is closed, latch can not be withdrawn using the handle

Features
3-point lock
Gear-based mechanism
Latch functionality
Right- or left-hand installation

Options
4 bolts (Ø18 mm) for standard 28 mm bolt spacing (A)
3 bolts for 37 mm bolt spacing (A)

Specifications
Handle operation
Latch: Ø20 mm
Backset: 65 mm
Bolt throw: 30 mm
Lever stroke: 20 mm
Bolt protrusion: 3,13 mm (B)
Variety of key lenghts

Notes
For ordering information see the Mul-T-Lock Italy Catalogue.

Category of use

Multipoint security lock for heavy duty steel doors-mounted during door assembling.

Description

Double activated by Euro cylinder with DIN cam and lever key, double turn for each mechanism.

Features

• LATCH-reversible (L,R option)
• when the lever lock is fully locked, the latch cannot be operated wtih handle or cylinder.
• when the cylinder lock is locked, the lever lock cannot be operated (open or close).
• Suitable for auxiliary lock A103

Dimensions

BS=65, CC1=85, CC2=120, Bolts Diameter 18mm

Finishes

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated
• Lever keys with plastic head with MTL logo

Category of use

Multipoint security lock for heavy duty steel doors-mounted during assembling.

Description

Activated by Euro cylinder with DIN cam.  Double rotation of the cylinder 29 (15+14) mm stroke

Features

• LATCH-reversible (L,R option)
• When the bolts are in closed position the latch is disable with the handle
• Suitable for auxiliary lock A103


Dimensions

BS=65, CC1=85, Bolts Diameter 18 mm

Finishes

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated

Category of use

Multipoint security lock for heavy duty steel doors.

Description

• Activated by Euro cylinder with DIN cam mechanism
• Double Turn dead bolt function 17/35mm

Features

• LATCH-reversible (L,R option)
• Suitable for auxiliary lock A103


Dimensions

BS=65, CC=85, CC2=120, Bolts Diameter 16 mm x 3

Finishes

• Front plate: Chrome-Nickel plated steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated steel

Suitable for general use as auxiliary lock.

• 352R
• 204A
• 104A

           Double bolt with 18 mm diameter

Function

• Bolt Stroke 28mm
• Vertical Drop 20+1.0 mm

Lock Finish

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated

Application
Security lever lock for wood and steel doors.
Preferred installation as additional lock for reinforcing security level.

Operation
Double key turn for bolt action
Right- or left-hand applications
Bolt throw: 1 key turn 18 mm; 2 key turns 36 mm

Options
Keys: 3 double-bit keys; 5 double-bit keys
Front plate plating: Chrome nickel; Satin nickel; Shiny brass

Specifications
Backset: 60 mm
Triple round deadbolts: Ø16 mm
Keyway protective plate hinders drill attacks

Materials
Case: galvanized steel
Mechanism: steel
Bolts: chrome nickel-plated steel
Front plate: see options
Keys: chrome nickel-plated brass

Application
Suitable for wood and steel doors, providing single-bolt locking.

Operation
Compatible with Mul-T-Lock Euro profile cam cylinders
360˚/720˚ key rotation for bolt action
Bolt throw: 17 mm for 360˚ key turn; 34 mm for 720˚ key turn
Additional travel for latch action
Right- or left-hand applications
Handle spindle with ball-bearing mechanism for high-traffic doors

Specifications
Backset: 60 mm
Triple round deadbolts: Ø16 mm
Latch: Ø20 mm

Materials
Case: galvanized steel
Mechanism: steel
Bolts and front plate: chrome nickel plated steel
