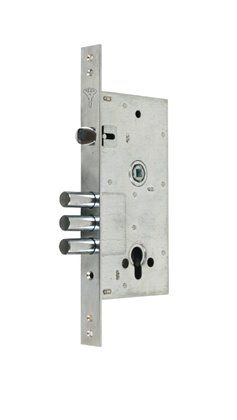

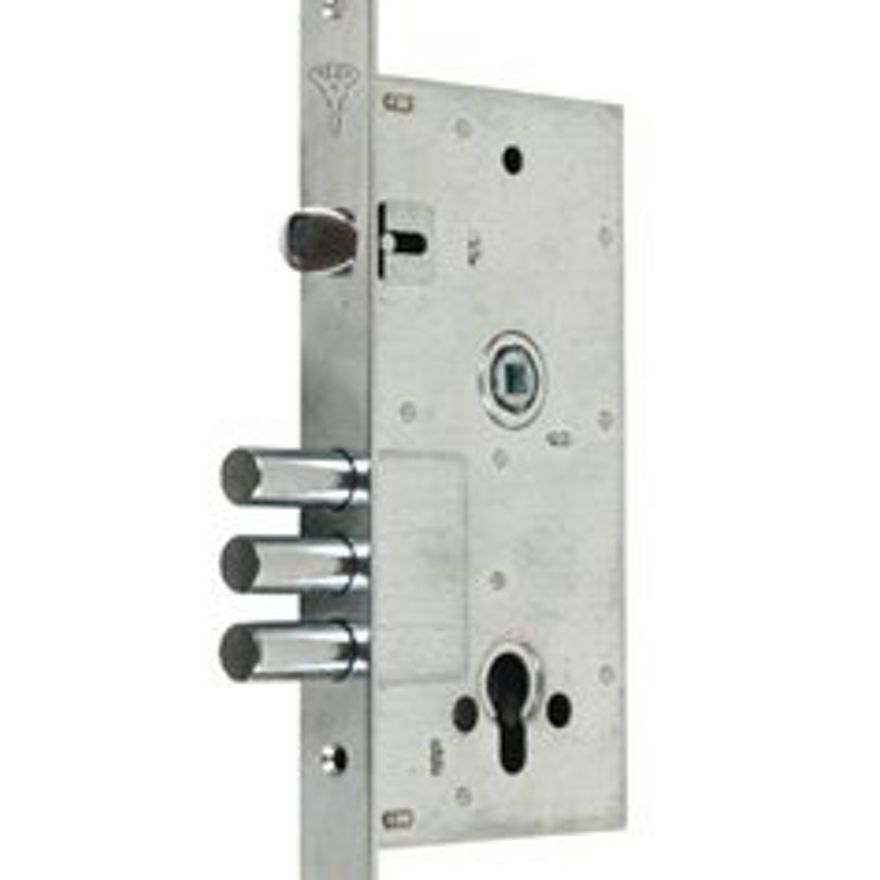

Lock 354M

Application
Suitable for wood and steel doors, providing single-bolt locking.

Operation
Compatible with Mul-T-Lock Euro profile cam cylinders
360˚/720˚ key rotation for bolt action
Bolt throw: 17 mm for 360˚ key turn; 34 mm for 720˚ key turn
Additional travel for latch action
Right- or left-hand applications
Handle spindle with ball-bearing mechanism for high-traffic doors

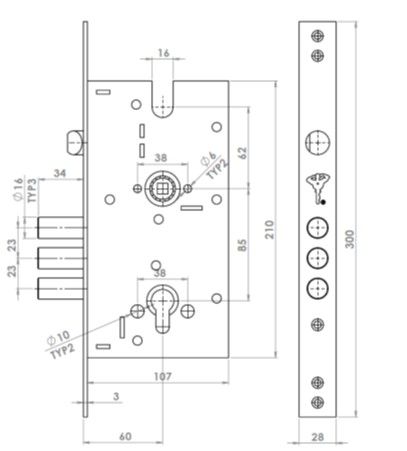

Specifications
Backset: 60 mm
Triple round deadbolts: Ø16 mm
Latch: Ø20 mm

Materials
Case: galvanized steel
Mechanism: steel
Bolts and front plate: chrome nickel plated steel
