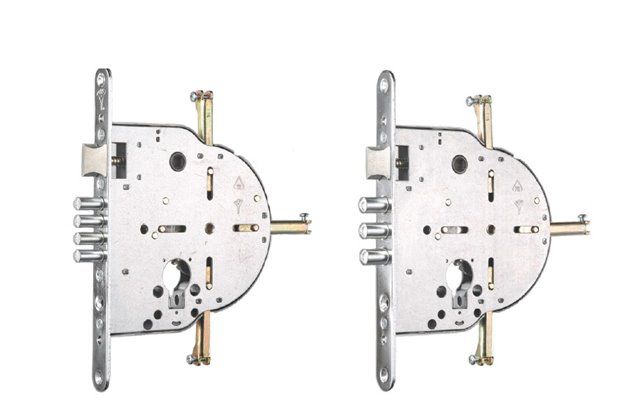

4-Way Locks 235, 265

Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action
Additional travel for latch action
Right- or left-hand applications

Options
Standard backset: 65 mm
Special order backsets: 75 & 85 mm
Other backsets avalible only with Ø10 mm bolts
Optional 8'' front band to fit American hollow core metal doors
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Can be assembled with SH300 High Security hardware
Model 235 available with ØD = 12.7 mm

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)

Standards
ISI technical specification 196; EN12209
