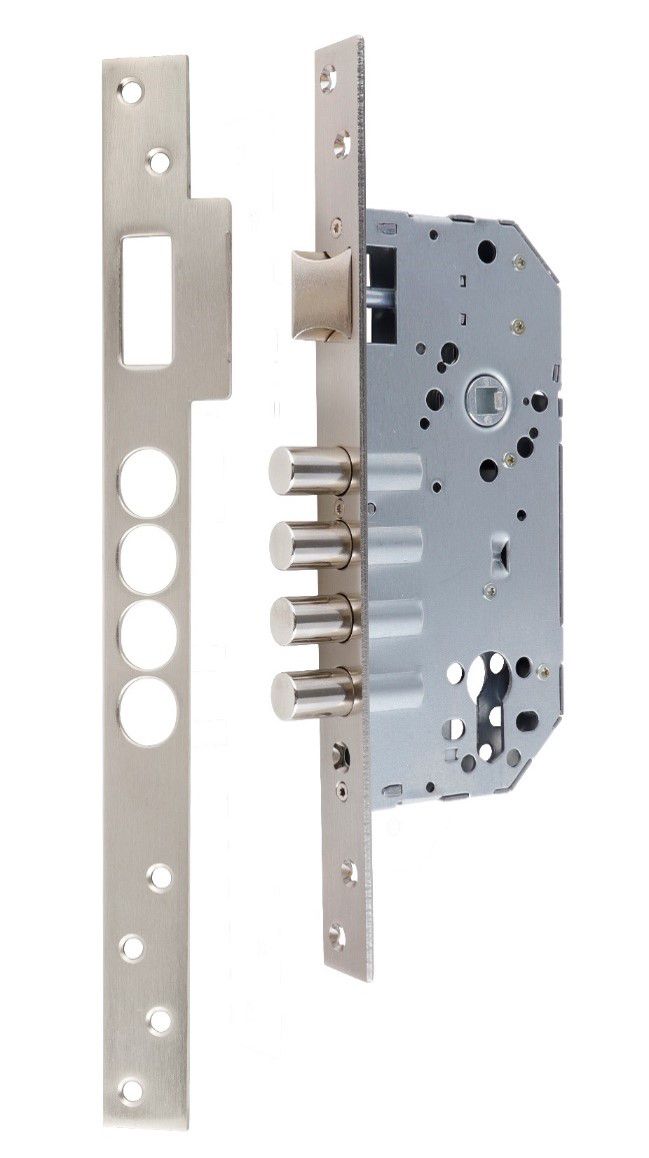

Lock 277

Category of use

Security lock for all doors

Description

Activated by Euro cylinder with DIN cam. Double rotation of the cylinder 20 (10/10) mm stroke.

Features

• LATCH-reversible (L,R option)
• Handle spindle with ball bearing

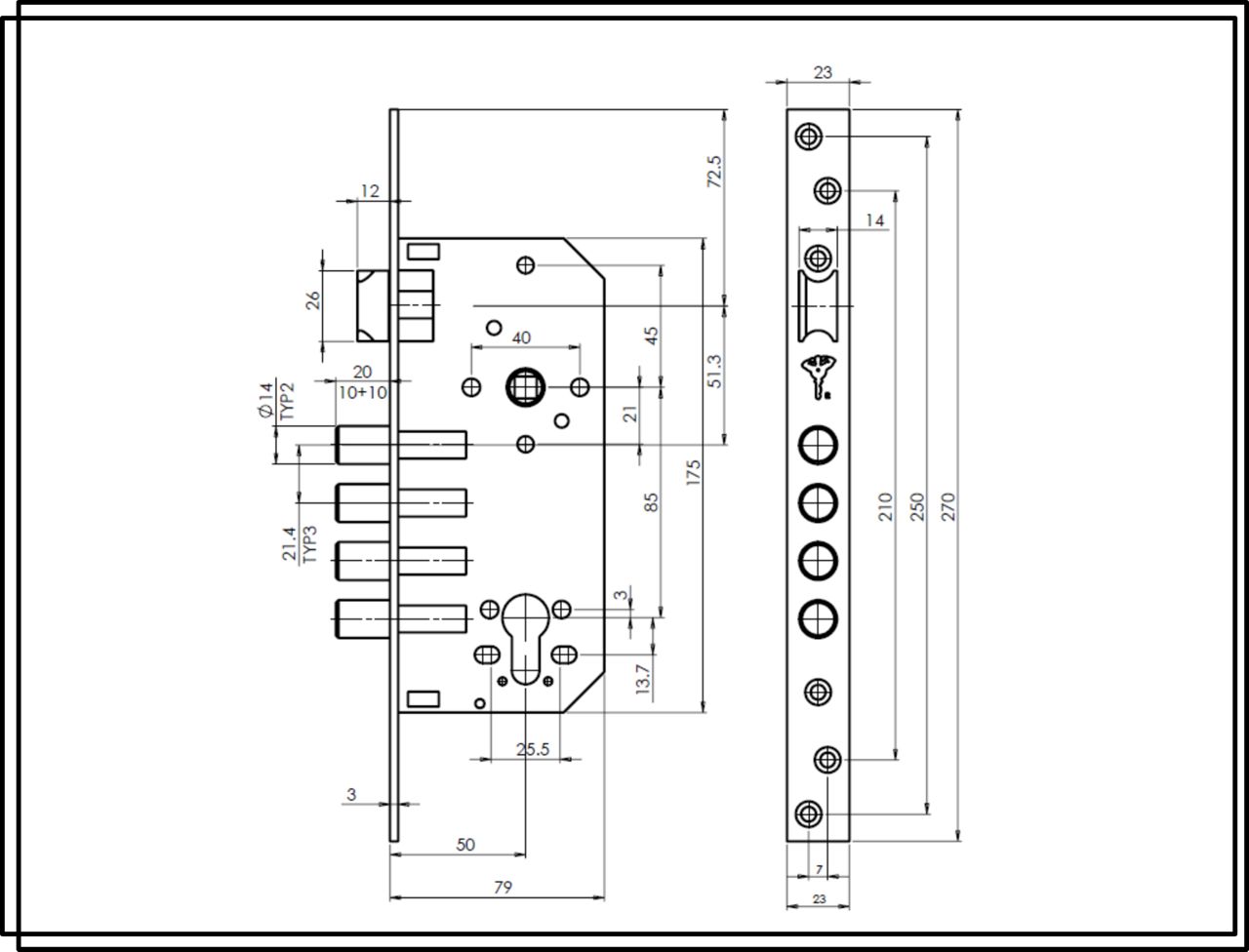

Dimensions

BS= 50, CC= 85, Bolts Diameter 12mm x 4

Finishes

• Front plate: Satin Nickel plated
• Lock box: galvanized steel.
• Bolts and Latch: Satin Nickel plated
