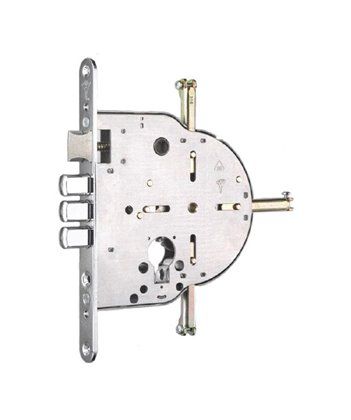

4-Way Lock 603

Application
Installed inside wood or metal doors to provide 4-way multi-bolt locking.

Operation
360˚ key rotation for deadbolt action
Additional travel for latch action
Right- or left-hand application

Options
Hardware colors: White, Brown, Shiny brass, Nickel chrome, Gold
Fixed outside handle

Materials
Case and mechanism: steel
Bolts: steel (optional hardened)
Cylinder protector: hardened steel

Additional features

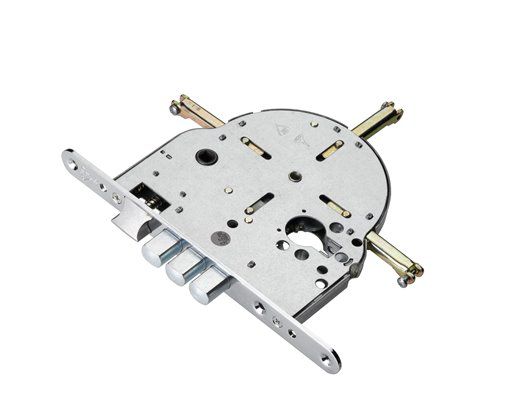

Patented 18 mm Double D shaped bolts allow installation in narrow frames, and enables the use of front plate (22 mm width) to fit regular steel door types.

Standards
ISI technical specification 196; EN12209
