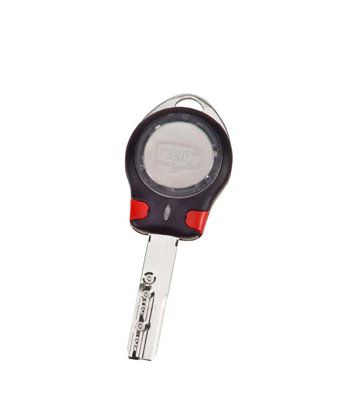

MTL™CLIQ® Control Key (C-Key)
The MTL™CLIQ® Control Key (C-Key) manages the electronic communication provided by the CLIQ® system.
It provides users secure access to the system software and the ability to transfer information between the software and cylinders. MTL™CLIQ® Control Key (C-Key) manages the electronic communication provided by the CLIQ® system.
Applications
- Each CLIQ® system must have at least one C-Key, referred to as the Master C-Key (MCK). The MCK is used to transfer information from CLIQ® cylinders to the software and not to open them.
- For systems with more than one administrator, it is possible to utilize additional C-Keys, also referred to as a Normal C-Key (NCK).
Features
- Update key authorization lists within cylinders
- Transfers audit trail information from cylinder to software
- Facilitates secured access to the software
Specifications
- IP57
- Temperature range: -10°C - 80°C
- Encrypted (3DES) communication between MTL™CLIQ® and software
- Encrypted (3DES) communication between MTL™CLIQ® and cylinder
Powered by a CR2032 lithium battery, which is easily replaced - Battery lifetime: 2 years
- Design: MCK - Black with red inserts; NCK - Black with red and yellow insert
