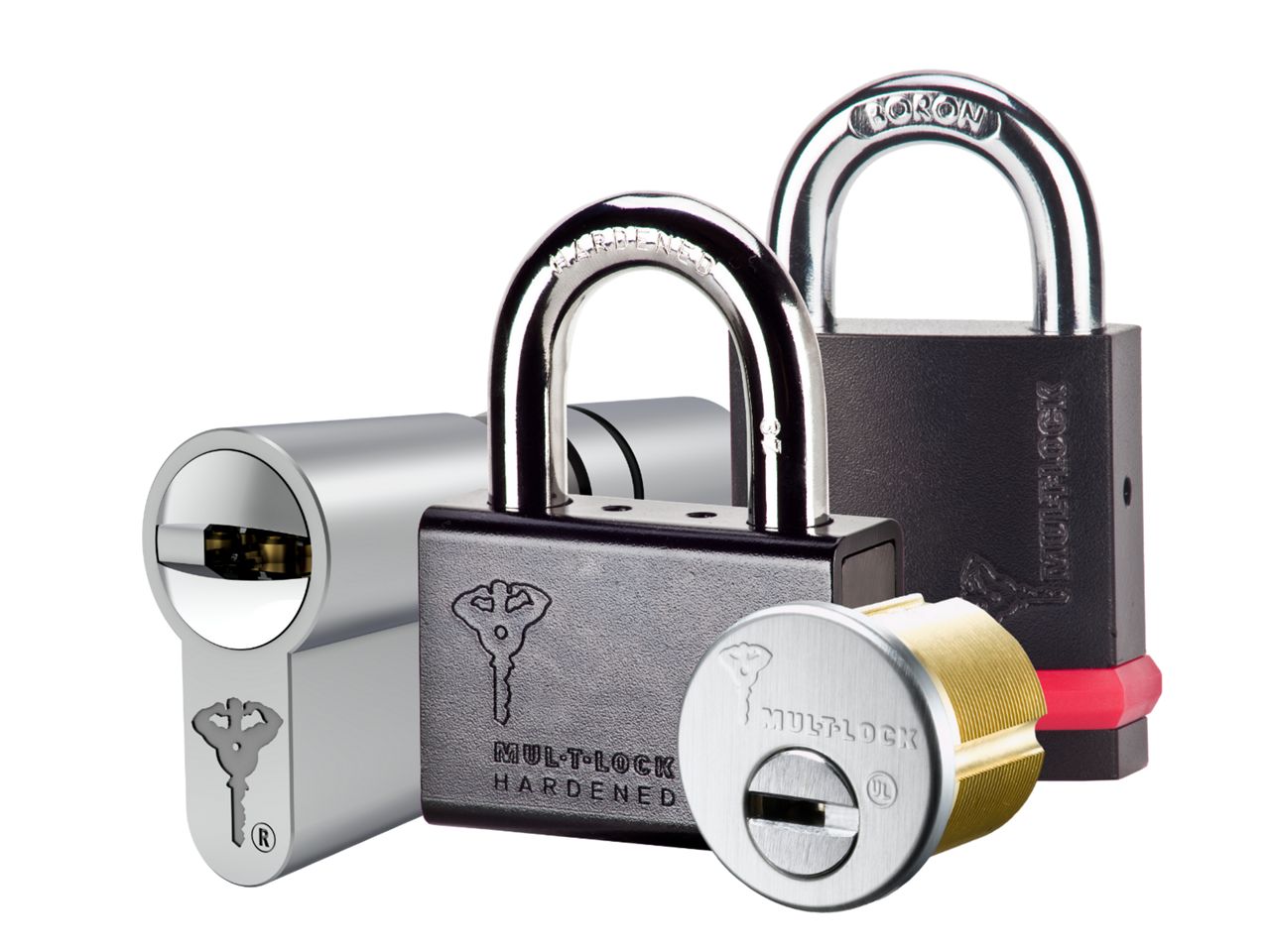

The electromechanical CLIQ^® cylinder is used in combination with the MTL^™CLIQ^® key enabling the collection and storage of information about when the cylinder has been accessed and with which key. In addition, the cylinder stores a list of authorized and unauthorized MTL^™CLIQ^® keys to ensure only enabled keys have access.

The CLIQ^® Local Programming Device (PD) is used to connect CLIQ^® keys and cylinders to the software (CLIQ^® Manager and/or CLIQ^® Web Manager), via secure communication.

Locally installed CLIQ^® Manager software is used for the day-to-day management of the CLIQ^® system. With it, the system administers can perform a variety of tasks based on the specific needs of their environment.

Using a mobile device or a computer as a modem, the CLIQ^® remote Mobile Programming Device (MPD) allows you to program MTL^™CLIQ^® user keys on the go.

Function

Embedded with its own IP address, the online CLIQ^® Remote Wall Programming Device allows users to remotely program Interactive^®+ and MT5^® keys.

Features
Makes authorization changes in Quartz+ keys
Actions time-profile changes in Quartz+ and QuartzXT keys
Retrieves audit trails from Quartz+ and QuartzXT keys
Revalidates keys
Automatically syncs keys' time settings
Provides visual and audio indicators of operational status and activity progress
Updates CLIQ^® key's firmware

Specifications
IP42
Power supply: 7-24 V AC/DC or Power over Ethernet (PoE) - class 1 IEEE 802.3 af. (Supply must be LPS approved)

A web-based software program, CLIQ^® Web Manager is used to manage the CLIQ^® Remote system.
User-friendly and intuitive, system administrators use it to remotely manage the day-to-day functionality of the CLIQ^® Remote system.

As a web-based solution, the CLIQ^® Web Manager provides access to the system's database from any computer with an Internet connection and has been specifically designed to handle large, decentralized systems.

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized aces and is operated with personal code.

Applications
For interior use.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free
Low-cost maintenance installation

Specifications
Max. door width 2 ¼" (57mm)
8mm spindle
Tubular latch adjustable backset 2 3/8" (60mm) to 2 ¾" (70mm)
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium

The MTL^™CLIQ^® Control Key (C-Key) manages the electronic communication provided by the CLIQ^® system.
It provides users secure access to the system software and the ability to transfer information between the software and cylinders. MTL^™CLIQ^® Control Key (C-Key) manages the electronic communication provided by the CLIQ^® system.

Used in combination with the CLIQ^® cylinder, the electromechanical MTL^™CLIQ^® user key can be programmed directly with authorizations and time profiles.
The key also collects usage information to create complete access audit trails.

Function
The SMARTair Wall Reader is a unique and elegant access control solution designed for simple installation and operation.

The Wall Reader operates magnet locks, electric strike or electronic locks. All the control elements are on the inside of the door to enhance security.

Applications
Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.

Management Options*
Standalone; Offline; Update-On-Card (UOC); Wireless

* Products are upgradable from Standalone to Wireless

Features
Simple installation
Simple operation
4-digit code

System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail; Temporary blockage; 4 operation modes - Standard, Open, First person in, Dual user (available only in the wireless version)

Scales up to 64,000 user cards and up to 64,000 doors per system

Specifications
13.56 MHz, MIFARE^® DESFire or iClass technology
Contactless cards/tags
2-4 cm read/write distance
Temperature range: -10°C to 80°C
12V AC/DC power
Consumption: Relay not active - 20µA; Relay active - 150mA
Relay: NO, NC, C
Wireless frequency: 868MHz or 915 MHz


Options
With or without keypad (with keypad is not available as Standalone): RFID only; RFID and code; Code only

Function
Manages access to multiple doors with easy-to-use portable programmer and encoded, contactless electronic cards.

Applications
Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.


Management Options*
Standalone; Offline; Update-On-Card (UOC); Wireless
* Products are upgradable from Standalone to Wireless


Features
Wire-free installation
Simple operation
System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail (including registration of the internal handle); Escape - return feature; Door status indication: Door open, Door closed; 4 operation modes - Standard, Open, First person in, Dual user (available only in the wireless version)

Scales up to 64,000 user cards and up to 64,000 doors per system

Specifications
13.56 MHz, HID iClass^® DESFire & MIFARE^® RFID technology
Contactless RFID cards / tags / fobs / silicon & disposable wristbands
2 possible memory configurations: 1,500 users and 600 events in the event log; 1,000 users and 1,000 events in the event log
2 to 4 cm read/write distance
Powered by 3 x AA batteries
Conforms to ANSI grade 1
ANSI A115 prep modified for through-bolts
ADA-compliant levers
RF module frequency: 915 MHz
Shabbat compliant
UL-3hour fire rate latch bolt
Door width: 1 3/8" (35mm); 1 ¾" (44.5mm); 2 ¼" (57mm)


Options
Handles: SENA, TOLEDO
Finish: Inox, Satin chrome, PVD polished brass, PVD satin brass
Privacy feature
May be installed with or without cylinder
Cylinder options: Classic, Interactive^®+, MT5^®, 7x7, Integrator^® platforms; Keyed different, Keyed alike; Master keying; '3 in 1' (changeable combination); FleX Control
Internal / external models available
Cylindrical version: 2¾" (70mm) backset - standard; 2⅜" (60mm) backset - available
Mortise version: Automatic deadbolt - standard; Latch only version - available
Installation with a Panic Exit Device (PED)

Function

E-Motion is an electronic lock for lockers which may be integrated into the SMARTair system.

Features

Simple operation
System management through easy-to-use software


2 operation modes

High traffic:

All lockers are available to all users. Any user can select a free locker and lock it by presenting his/her card.
While the locker is locked, other users cannot open it, and the user cannot lock another locker.
Once the user has opened the locker, it is available to other users again.

User assigned:

Through the E-Motion or SMARTair software, a specific locker can be assigned to one or more users.
This mode of operation supports various access control features: authorizations, time schedules, daylight savings time and holidays, cancellation and replacement of lost tags, audit trail, temporary blockage, etc.

Electronic features

Reader module:

13.56 MHz, MIFARE^® RFID technology
ISO 14443A
Contact-less cards/tags (MIFARE Classic 1K, 4K and ULTRALIGHT)
Reading range: 10mm with standard credentials
LED indications (access authorized, access denied, low battery, etc.)

Control Unit:

Non-volatile memory
Up to 1500 users
Up to 1000 events recorded in audit trail
Real-time clock and calendar

Battery module:

Type: 3 x LR03 AAA 1.5V alkaline batteries
Estimated duration: 20,000 operations or 3 years
Changing the batteries is easy and simple; no need to disassemble the lock

Specifications

Temperature range (external side): from -20°C to 70°C
85% humidity without condensation
Fire certificate: 30', 60' and 90' UNFEN 1634:2000
IP55

Dimensions

Door width (3 models): 2-12mm; 12-15mm; 15-25mm
'Long' or 'Short' footprint

Function

The SMARTair Encoder is a device that encodes and reads user credentials using the SMARTair software.

Credentials

Read/write contactless chip identification technology RFID 13.56 MHz: MIFARE Classic 1K, 4K, and ULTRALIGHT, DESFire
; iClass 2k/2, 16k/2, 16k/16, 32k
Credential type: Card; Tag; Silicon bracelet; Transponder sticker; SynerKey

Specifications

Power cable − supplied with the encoder: Input - 100-240V 50/60 Hz 1.0A; Output - 7.5V 1.2A
USB connection to the PC − supplied with the encoder
Red & green indications

The SMARTair wireless and battery powered escutcheons are ideal for transit, office or meeting room doors. The wide range of escutcheons offer a RFID reader amd locking mechanism in one for all kind of doors.

Technical Data

Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Multi-authentication - RFID and PIN
Status informatin - Handle usage. Thumb turn usage: only in privacy model/ door position: door sensor ot included. No (normally open) connection. Override cylinder (in combination with special mortise lock)
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight SKIDATA. DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:
- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)


* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.


Electronic Technical Caracteristics

Reader Module

• Activation Mode: The escutcheon is activated without any previous contact with the escutcheon, just approching the credential, ensuring an efficient power consumption.
• Reading distance: 2-4 cm read/write distance with standard RFID credentials.
• Emergency openingL Jack connection is available to connect the portable programmer and emergency kit.
• RFID reader with capacitive keypad and backlighting LEDs (green/red/blue) for different warning signals: access authorized or denied, low battery level, etc.
• Buzzer included for PIN confirmation and access denied.
• Operating modes:

-- Only RFID.
-- Only PIN.
-- RFID + PIN.
-- PIN + RFID.


Control Unit

• Upgradeable firmware.
• None-volatile memory. The escutcheon can be programmed to operate in 2 modes:

-- Normal mode: 1500 users and 600 events.
-- High traffic door: unlimited number of users filtered into 48 groups (permissions). Stores 1000 events.

• Number of PINs:

-- PIN + RFID (or RFID + PIN): unlimited PINs (stored in card).
-- Only PIN mode: 8.
-- 1 door PIN.
-- 7 common PINs per installation selectable in each door.
-- Type of PIN: 4-6 digits.

• Real-time clock and calendar:

-- 14 time zones with 5 time periods (week days and holidays selectable).
-- State tables: configure 20 changes of operating modes in a door per day (switch door from lock to unlock).
-- Yearly calendar: is updated every month automatically by the wireless system.
-- Automatic DST: Daylight Saving Time change. Udatedwith calendar.

• Operating modes:

-- Standard: Default operating mode. Freewheeling handle until valid credential presented, then allows to open the door for 4-10 seconds (configurable).
-- Standard ADA: Standard with double opening time.
-- Passage mode: Escutcheon is always in open mode (cofigured by zones or by authorized user after doubke badging).
-- Dpuble user: Two valid credentials needed to open the door.
-- First User: lock in standard mode until first valid user enters, then will remain in passage mode (until closed by authorized user or automatically by time zone, state tables).

Battery Module

• Easy battery change.
• Maintains clock/calendar for 5 minutes without batteries.
• Battery status reported on every event or once a day if no event happens.

RF Module

• 868MHz or 915MHz selectable in field
• 30 configurable channels:

-- From 868,00 to 875,25 in steps of 0,25Mhz each channel.
-- From 915,00 to 922,25 in steps of 0,25Mhz each channel.

• Auto-link with communication Habs (easy setup).
• Upgradable firmware.

The SMARTair wireless and battery powered escutcheons are ideal for transit, office or meeting room doors. The wide range of escutcheons offer a RFID reader amd locking mechanism in one for all kind of doors.

Technical Data

Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:

• Offline/UoC: firmware upgrade
• Wireless Online:

- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)


* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.


Electronic Technical Caracteristics

Reader Module

• Activation Mode: The escutcheon is activated without any previous contact with the escutcheon, just approching the credential, ensuring an efficient power consumption.
• Reading distance: 2-4 cm read/write distance with standard RFID credentials.
• Emergency openingL Jack connection is available to connect the emergency kit and to open with emergency or user card..
• RFID reader with capacitive keypad and backlighting LEDs (green/red/blue) for different warning signals: access authorized or denied, low battery level, etc.
• Buzzer included for PIN confirmation and access denied.

Control Unit

• Upgradeable firmware.
• None-volatile memory.
• 100 PINS per device. (4-6 digits)
• 500 User cards per device.
• Operating Modes:

 -- Standard: Default operating mode. Freewheeling handle until valid credential presented, then allows to open the door for 4-10 seconds.
-- Passage mode: Escutcheon is always in open mode (cofigured by zones or by authorized user after double badging or double PIN).


Battery Module

• Easy battery change.
• All Users (Cards and PINs) sign low batteries during the reading (red and green led blink). For very low batteries red and green led will blink alternatively but the escutcheon will not grant the access.

Function
The SMARTair Knob Cylinder is an easy-to-use, simple-to-install, and highly effective electronic cylinder that can be integrated with other SMARTair locking elements − escutcheons, wall readers, e-motion − in one Access Control system managed by SMARTair Software.

The Knob Cylinder is upgradable from Standalone to Offline/Update-On-Card and/or Wireless, making it the perfect solution for both new and retrofit installations.

Mechanical features
Freewheeling knob until an authorized credential is presented
Motorized clutch activates cylinder cam
Compatible with a mass variety of standard mortise locks (Euro, Scandinavian, Finnish and ANSI models are available)
Panic function: Internal knob turning always opens door (only Euro model)
Available Knob Cylinder models:
Mortise cylinder

Reader module:
13.56 MHz, MIFARE^® DESFire or iClass technology
Contact-less cards/tags
Opening distance: 10mm with standard cards
Programming device connection located on the front section of the electronic knob
Indication light: Red & green LED

Control Unit:
Non-volatile memory
Programmable in 3 modes: Normal mode - 1,500 users and 600 audit trail entries, Extended mode - 1,000 users and 1,000 audit trail entries, High traffic - All users of the installation have access and 1,000 audit trail entries, Real-time clock and calendar - 14 time profiles

RF module (Wireless):
868 MHz bi-directional radiofrequency technology
Serves to send updates from the hub to the control unit, and to send audit trail from the control unit to the hub
Encrypted communication
Distance between the RF module and the hub: 25m

Battery module:

1 x CR123A Lithium battery

Estimated battery life: 40,000 cycles; 2 years in standby (for the wireless model: 1-2 years in standby)
Simple battery change; no dismounting required

Specifications
85% humidity without condensation
Temperature range: 0°C to 70°C
IP55 (extreme model)

Function

The SMARTair Wall Reader is a unique and elegant access control solution designed for simple installation and operation.
The Wall Reader operates magnet locks, electric strike or electronic locks.
All the control elements are on the inside of the door to enhance security.

Applications
Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.

Management options*
Standalone; Offline; Update-On-Card (UOC)
* Products are upgradable from Standalone to Offline/ Update-On-Card (UOC)

Features
Simple installation
Simple operation
System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail; Temporary blockage; 3 operation modes - Standard, Open, First person in
Scales up to 64,000 user cards and up to 64,000 doors per system

Specifications
13.56 MHz, MIFARE^® DESFire technology
Contactless cards/tags
2-4 cm read/write distance
Temperature range: -10°C to 80°C
12V AC/DC power
Consumption: Relay not active - 20µA; Relay active - 150mA
Relay: NO, NC, C
