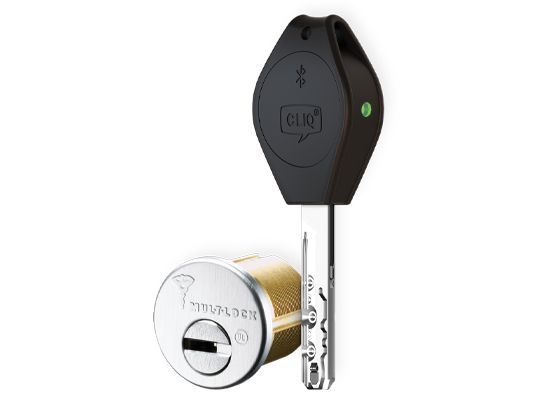

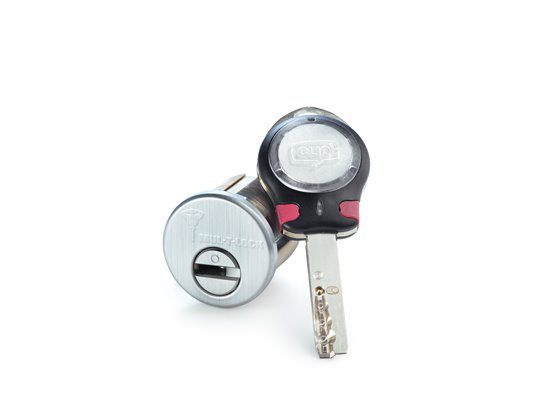

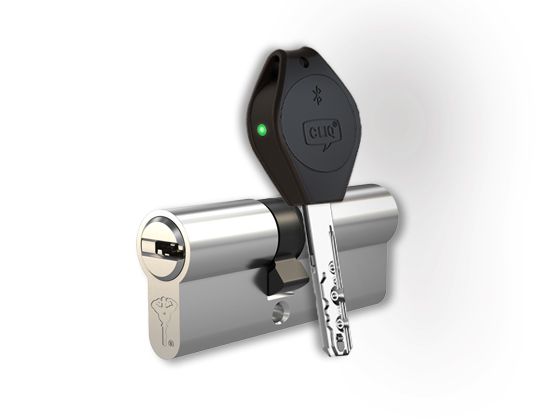

CLIQ® Cylinder

Function

The electromechanical CLIQ® cylinder is used in combination with the CLIQ® key enabling the collection and storage of information about when the cylinder has been accessed and with which key.
In addition, the cylinder stores a list of authorized and unauthorized CLIQ® keys to ensure only enabled keys have access.

Applications
The CLIQ® cylinder is based on Mul-T-Lock's High Security mechanical platforms Interactive®+ and MT5®.
It is available in a wide range of cylinder applications including Euro (double or single), rim, mortise, kik, padlocks, switch cylinder and more.

Features
Audit trail standard memory: 100 events
Audit trail extended memory: 1000 events

Specifications
IP54 (IPx8 with anti-water coating protection)
Temperature range: -20°C - +60°C
Encrypted (3DES) communication between cylinder and key/c-key
Available in a variety of finishes
Minimum length: 33 mm (Euro model)
Power supplied via the CLIQ® key's embedded battery
