Challenge

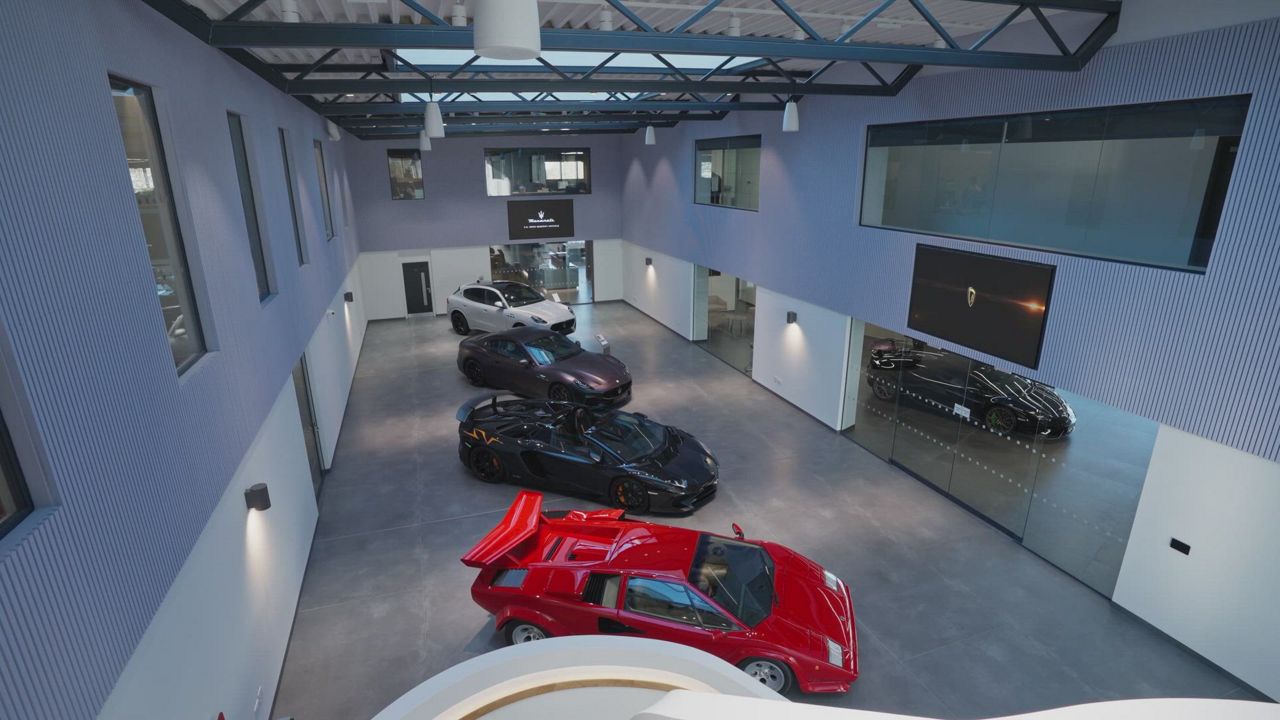

H.R. Owen is a luxury car dealership specialising in the sale, service and repair of high-end vehicles. Its diverse portfolio includes high-end brands, including Lamborghini, Bentley, Aston Martin, Rolls Royce and Lotus. Based primarily in London, the company expanded its operations with a new facility in Hatfield to support its growing business. Due to the high value of the vehicles on display, this new site required a comprehensive, high-security solution tailored for a luxury automotive environment.
Key requirements
Solution
“During the planning stages with H.R. Owen and the architects, it was clear that ASSA ABLOY’s SMARTair® solution was the only real choice for the site,” says Matthew Taylor, Operations Director at Knightsbridge Security, responsible for the system installation.
Among more than 100 devices installed throughout the facility, SMARTair Wall Readers and SMARTair i-max Escutcheons were selected for their sleek aesthetics and versatility. SMARTair devices are wireless, and therefore fast and costeffective to fit. With no need for extensive cabling, devices are quickly deployed, minimizing onsite disruption. Another benefit of choosing wireless, the reach of H.R. Owen’s solution can be easily extended or reconfigured anytime, protectingth eir investment for the long term.
The SMARTair system enables remote access management, allowing administrators to grant, monitor, or revoke access rights in real time in response to any potential threat.
H.R. Owen also chose SMARTair’s mobile access solution Openow®: staff use their smartphones as credentials instead of physical cards. This boosts both security – fewer lost credentials – and sustainability performance by cutting single-use plastics. The Openow® Parking Mode feature allows authorized personnel to open parking barriers from 3–5 meters away using their mobile device, enhancing both driver safety and vehicle protection, by eliminating the need to exit the vehicle.
A robust wireless device to bring secure RFID and BLE unlocking to every high-traffic door. i-max, an electronic escutcheon is easy to retrofit and compatible with Standalone, UOC, online or offline system management.
Application
SMARTair i-max comes in a variety of finishes and with a slimline design to fit every building style and scheme. Different models of handles and antibacterial surface for healthcare applications are available.
Technical Data
Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Multi-authentication - RFID and PIN
Status informatin - Handle usage. Thumb turn usage: only in privacy model/ door position: door sensor ot included. No (normally open) connection. Override cylinder (in combination with special mortise lock)
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight SKIDATA. DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:
- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)
* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.
