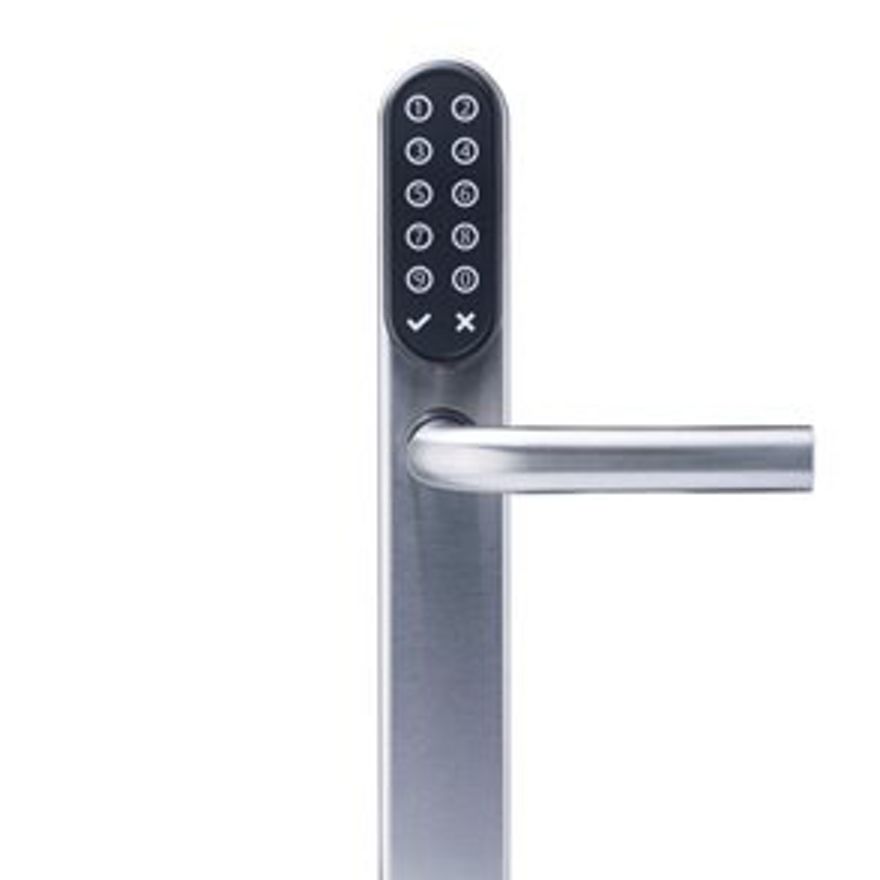

SMARTair® Escutcheon (Offline, UOC, Wireless)

The SMARTair wireless and battery powered escutcheons are ideal for transit, office or meeting room doors. The wide range of escutcheons offer a RFID reader amd locking mechanism in one for all kind of doors.

Technical Data

Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Multi-authentication - RFID and PIN
Status informatin - Handle usage. Thumb turn usage: only in privacy model/ door position: door sensor ot included. No (normally open) connection. Override cylinder (in combination with special mortise lock)
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight SKIDATA. DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:
- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)


* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.


Electronic Technical Caracteristics

Reader Module

  • Activation Mode: The escutcheon is activated without any previous contact with the escutcheon, just approching the credential, ensuring an efficient power consumption.
  • Reading distance: 2-4 cm read/write distance with standard RFID credentials.
  • Emergency openingL Jack connection is available to connect the portable programmer and emergency kit.
  • RFID reader with capacitive keypad and backlighting LEDs (green/red/blue) for different warning signals: access authorized or denied, low battery level, etc.
  • Buzzer included for PIN confirmation and access denied.
  • Operating modes:

-- Only RFID.
-- Only PIN.
-- RFID + PIN.
-- PIN + RFID.


Control Unit

  • Upgradeable firmware.
  • None-volatile memory. The escutcheon can be programmed to operate in 2 modes:

-- Normal mode: 1500 users and 600 events.
-- High traffic door: unlimited number of users filtered into 48 groups (permissions). Stores 1000 events.

  • Number of PINs:

-- PIN + RFID (or RFID + PIN): unlimited PINs (stored in card).
-- Only PIN mode: 8.
-- 1 door PIN.
-- 7 common PINs per installation selectable in each door.
-- Type of PIN: 4-6 digits.

  • Real-time clock and calendar:

-- 14 time zones with 5 time periods (week days and holidays selectable).
-- State tables: configure 20 changes of operating modes in a door per day (switch door from lock to unlock).
-- Yearly calendar: is updated every month automatically by the wireless system.
-- Automatic DST: Daylight Saving Time change. Udatedwith calendar.

  • Operating modes:

-- Standard: Default operating mode. Freewheeling handle until valid credential presented, then allows to open the door for 4-10 seconds (configurable).
-- Standard ADA: Standard with double opening time.
-- Passage mode: Escutcheon is always in open mode (cofigured by zones or by authorized user after doubke badging).
-- Dpuble user: Two valid credentials needed to open the door.
-- First User: lock in standard mode until first valid user enters, then will remain in passage mode (until closed by authorized user or automatically by time zone, state tables).

Battery Module

  • Easy battery change.
  • Maintains clock/calendar for 5 minutes without batteries.
  • Battery status reported on every event or once a day if no event happens.

RF Module

  • 868MHz or 915MHz selectable in field
  • 30 configurable channels:

-- From 868,00 to 875,25 in steps of 0,25Mhz each channel.
-- From 915,00 to 922,25 in steps of 0,25Mhz each channel.

  • Auto-link with communication Habs (easy setup).
  • Upgradable firmware.
