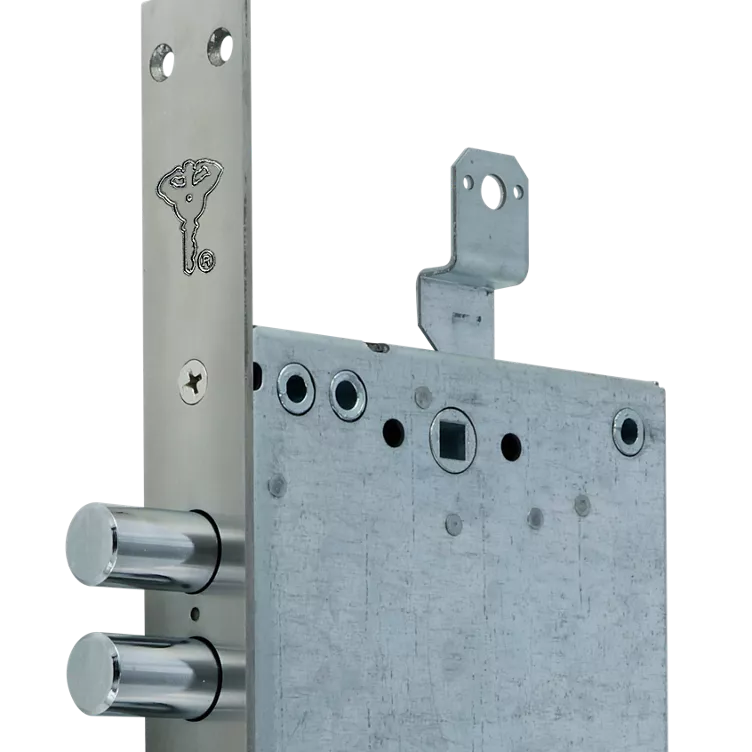

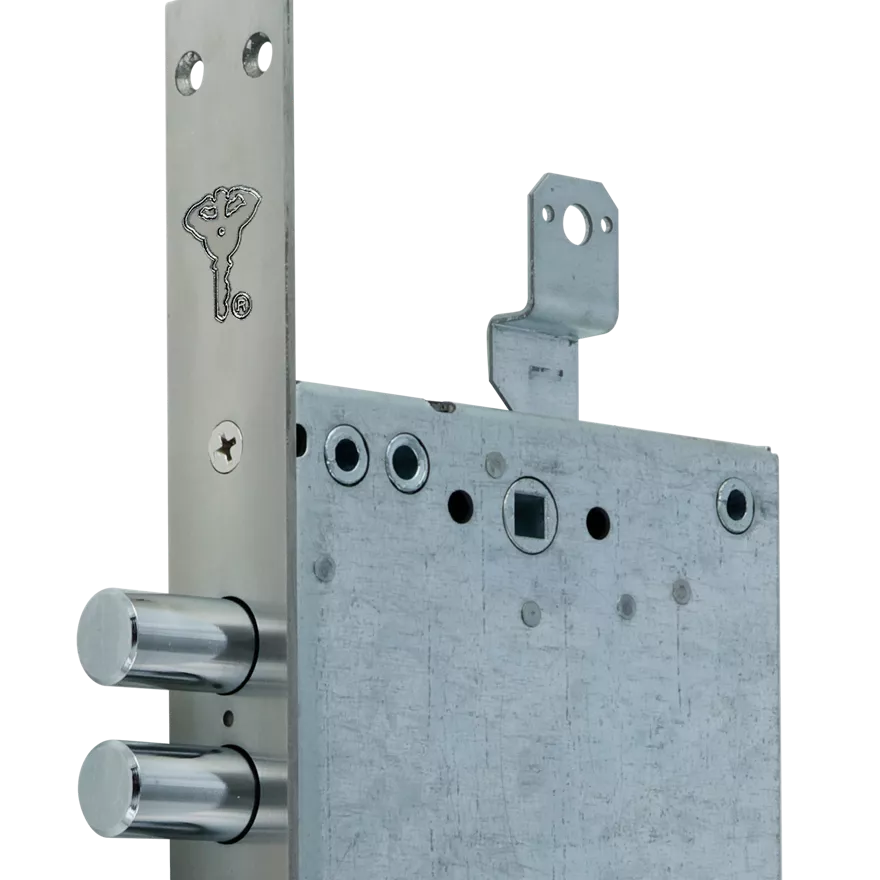

Multipoint Lock 104A

Category of use

Multipoint security lock for heavy duty steel doors-mounted during assembling.

Description

Activated by Euro cylinder with DIN cam.  Double rotation of the cylinder 29 (15+14) mm stroke

Features

• LATCH-reversible (L,R option)
• When the bolts are in closed position the latch is disable with the handle
• Suitable for auxiliary lock A103


Dimensions

BS=65, CC1=85, Bolts Diameter 18 mm

Finishes

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated
