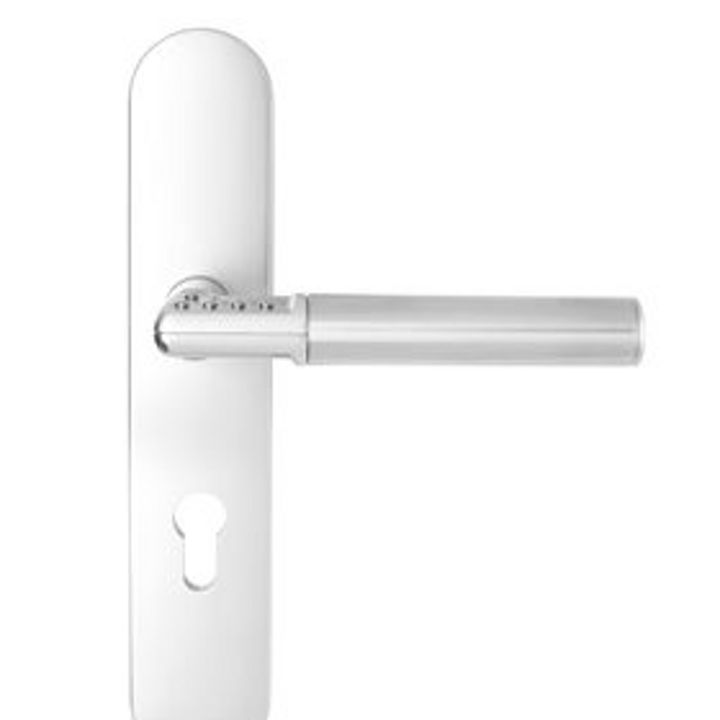

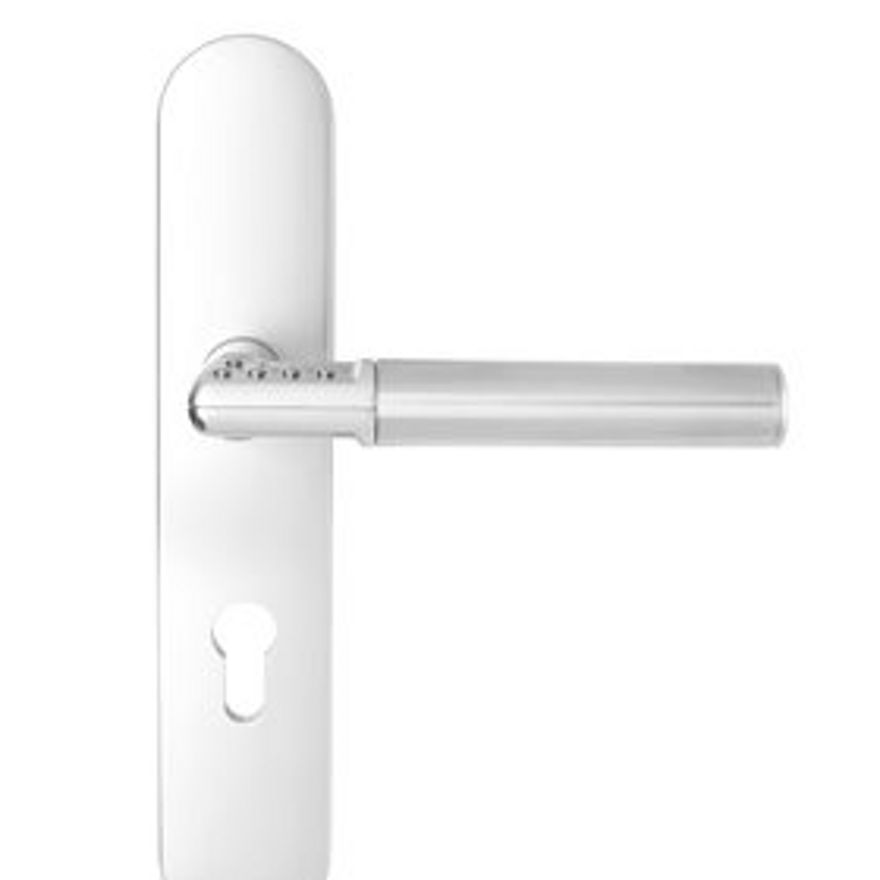

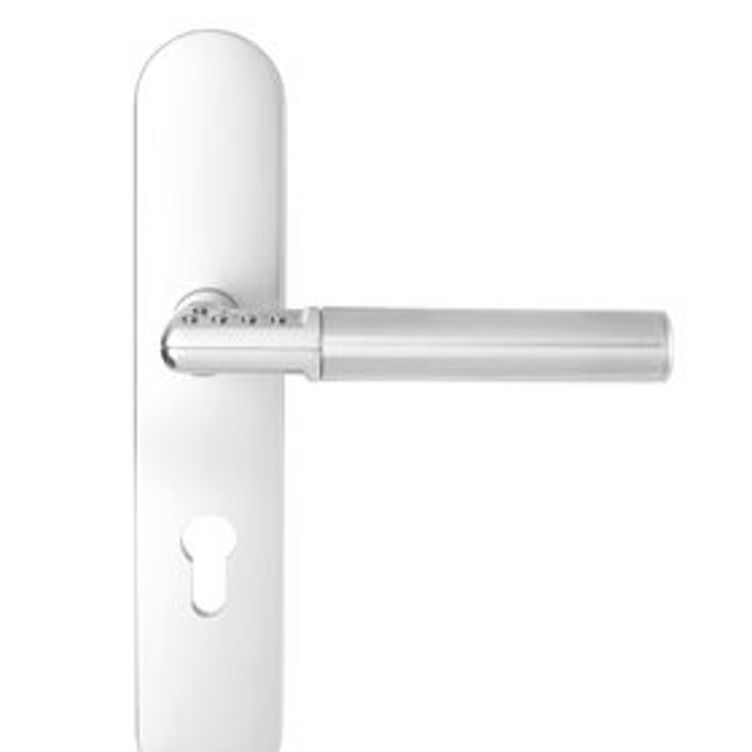

Code-Handle® Long Plate (DIN standard)

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized access and is operated  with personal code.

Applications
For indoor use.
Compatible with most types of locking/latching products.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free installation
Low-cost maintenance

Specifications
Door width: 35-80mm
7 or 8mm spindle
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium
Material: Brushed stainless steel and satin chrome zinc
Tested with a minimum of 100,000 operations, according to EN 1906
Fire tested according to EN 1363

Options
Distance between handle and cylinder (CC): 55mm; 70mm; 72mm; 85mm; No cylinder hole

Download Code Handle® Long Plate Manual
