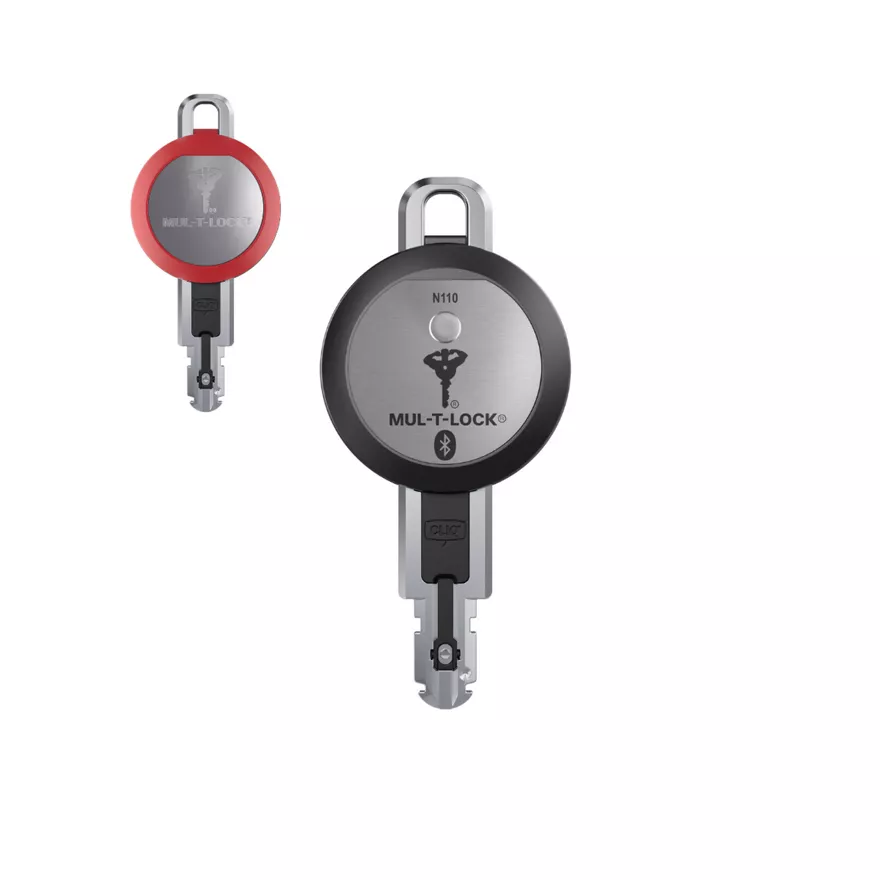

CLIQ Connect Key
CLIQ Connect keys are equipped with Bluetooth technology so users can update their key from anywhere using a paired connection with the CLIQ Connect mobile app on a smartphone or tablet.
The fully electronic key is rigorously tested to withstand extreme weather conditions and is operated by a single battery with a 10-year lifespan. This key can be used alongside all other CLIQ keys and operates all 60+ CLIQ cylinders.
Every CLIQ programmable key is built around sophisticated but uncomplicated electronics, and protected by Advanced Encryption Standard (AES) encryption.
Physically, CLIQ keys are robust and suited to even the most demanding environments, including climate extremes. CLIQ access systems are deployed successfully in both cold, exposed locations and hot, dusty climates. CLIQ keys are waterproof to the international IP67 standard.
Usability is another chief concern when we design a CLIQ key. Key electronics are managed by a fast processor. A battery inside the key powers both the key itself and, on insertion, the electronic CLIQ lock. It is easy for a non-specialist to change the key’s standard battery, which has a typical lifetime of 10 years.
Product
- Electronic unique and locking system coding
- Visual and acoustic indication of function and battery status
- The data and energy transmission to the cylinder is contact-based
- Data transmission to the key and cylinder is highly encrypted
- Communicates with a smartphone or tablet via Bluetooth® (BLE)
- Receives time settings via the CLIQ® Connect app
- Temperature range 0° C to +70° C
- Protected against temporary immersion in water (IP67)
- Power supply via standard lithium battery (CR2450)
- For approx. 20,000 locks with approx. 2,000 Bluetooth® connections (approx. 2 years lifetime)
- Battery can be easily and independently changed by the user, without tools
- Additionally with time function and event memory for the last 100 closing operations
- Standard coloring of the battery cover black (RD=SW)
- Other colours of the battery cover blue (RD=BL), yellow (RD=GE), green (RD=GN), grey (RD=GR), red (RD=RT) and orange (RD=OR)
- Optionally available with RFID chip integrated into the battery cover (AUS=LEGIC PRIME, AUS=LEGIC ADVANT, AUS=MIFARE Classic®, AUS=MIFARE DESFire EV1, AUS=MIFARE®® DESFire®® EV2, AUS=EM4102, AUS=HITAG 1 or AUS=HITAG 2)
- Optionally available for use in Zone 1 potentially explosive atmospheres (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb
Scope of delivery
- 1 electronic user key incl. battery
