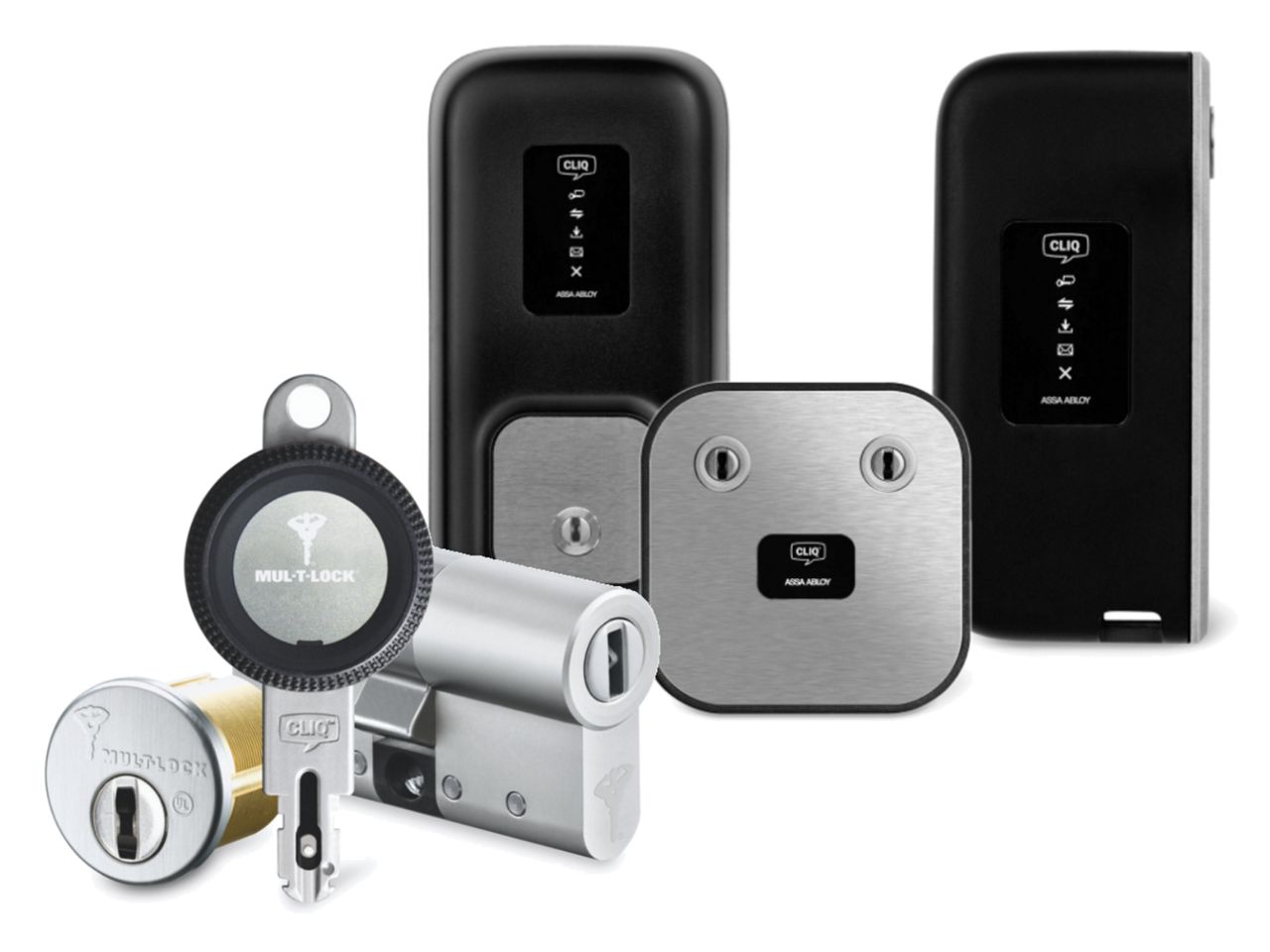

The MTL^™CLIQ^® Control Key (C-Key) manages the electronic communication provided by the CLIQ^® system.
It provides users secure access to the system software and the ability to transfer information between the software and cylinders. MTL^™CLIQ^® Control Key (C-Key) manages the electronic communication provided by the CLIQ^® system.

The electromechanical CLIQ^® cylinder is used in combination with the MTL^™CLIQ^® key enabling the collection and storage of information about when the cylinder has been accessed and with which key. In addition, the cylinder stores a list of authorized and unauthorized MTL^™CLIQ^® keys to ensure only enabled keys have access.

The CLIQ^® Local Programming Device (PD) is used to connect CLIQ^® keys and cylinders to the software (CLIQ^® Manager and/or CLIQ^® Web Manager), via secure communication.

Locally installed CLIQ^® Manager software is used for the day-to-day management of the CLIQ^® system. With it, the system administers can perform a variety of tasks based on the specific needs of their environment.

Using a mobile device or a computer as a modem, the CLIQ^® remote Mobile Programming Device (MPD) allows you to program MTL^™CLIQ^® user keys on the go.

Function

Embedded with its own IP address, the online CLIQ^® Remote Wall Programming Device allows users to remotely program Interactive^®+ and MT5^® keys.

Features
Makes authorization changes in Quartz+ keys
Actions time-profile changes in Quartz+ and QuartzXT keys
Retrieves audit trails from Quartz+ and QuartzXT keys
Revalidates keys
Automatically syncs keys' time settings
Provides visual and audio indicators of operational status and activity progress
Updates CLIQ^® key's firmware

Specifications
IP42
Power supply: 7-24 V AC/DC or Power over Ethernet (PoE) - class 1 IEEE 802.3 af. (Supply must be LPS approved)

Used in combination with the CLIQ^® cylinder, the electromechanical MTL^™CLIQ^® user key can be programmed directly with authorizations and time profiles.
The key also collects usage information to create complete access audit trails.

A web-based software program, CLIQ^® Web Manager is used to manage the CLIQ^® Remote system.
User-friendly and intuitive, system administrators use it to remotely manage the day-to-day functionality of the CLIQ^® Remote system.

As a web-based solution, the CLIQ^® Web Manager provides access to the system's database from any computer with an Internet connection and has been specifically designed to handle large, decentralized systems.

Function

 High Security electromechanical locking handle for windows that open to the interior, and for patio and balcony doors, that uses a unique personal code for operation.

Application

 Locking solution for windows, and for patio and balcony doors

Features

Keyless locking

Interior locking for patio/balcony doors and windows

Can be locked at any 90° angle

Suitable for tilt & turn windows$0Up to 5 distinct 6-digit user codes

Simple operation$0Blocking function when the wrong code has been repeatedly entered

Wire-free, simple installation

Low-cost maintenance

Patented technology



Specifications

Fits DIN standard 43mm c/c

Tested to meet applicable standards from EN13126-1, EN1627-30, SS 3620; ESD and EMC compatibility

Battery: 2 x AAA alkaline (supplied with handle)

Battery lifetime is approximately 2 years/15,000 operations

7 mm spindle

Finish: Satin Chrome; White

Supplied with standard M5 screws and security screws

Supplied with interchangeable spindle lengths: 35, 40 and 55mm)

Indicator lights and sounds

Material: brushed stainless steel and satin chrome zinc

Application
For easy and convenient locking/unlocking of interior door. E.g. Office doors, consultation rooms, store applications (e.g. staff doors)
Patented product, It's a handle with built-in code lock. The handle is battery operated and no wiring is required during installation.

Function
• For indoor use only.
• Fits lock houses with Japanese standards.
• 4-6 digit code.
• Two CR2, 3V lithium batteries. (Tested for a durability of about 30,000 cycles of 1 opening and 1 locking operation).
• Indication for battery replacement.
• Tested for a durability of at least 100,000 operations, according to EN 1906.
• Fire tested according to EN 1363.

Features
• Easy locking / unlocking without keys.
• No wiring is needed.
• Main code and up to 9 different user codes.
• Blocking function if wrong code is entered five times.
• Selecting automatic or manual locking.
• "Simplicity creates security."

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized aces and is operated with personal code.

Applications
For interior use.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free
Low-cost maintenance installation

Specifications
Max. door width 2 ¼" (57mm)
8mm spindle
Tubular latch adjustable backset 2 3/8" (60mm) to 2 ¾" (70mm)
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized access and is operated with personal code.

Applications
For interior use.
Compatible with most types of locking/latching products.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free installation
Low-cost maintenance

Specifications
Door width: 35-80mm
7 or 8mm spindle
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium
Material: Brushed stainless steel and satin chrome zinc
Tested with a minimum of 100,000 operations, according to EN 1906
Fire tested according to EN 1363
