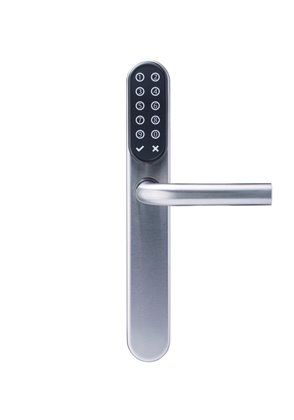

SMARTair® Escutcheon (Standalone)

The SMARTair wireless and battery powered escutcheons are ideal for transit, office or meeting room doors. The wide range of escutcheons offer a RFID reader amd locking mechanism in one for all kind of doors.

Technical Data

Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:

  • Offline/UoC: firmware upgrade
  • Wireless Online:

- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)


* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.


Electronic Technical Caracteristics

Reader Module

  • Activation Mode: The escutcheon is activated without any previous contact with the escutcheon, just approching the credential, ensuring an efficient power consumption.
  • Reading distance: 2-4 cm read/write distance with standard RFID credentials.
  • Emergency openingL Jack connection is available to connect the emergency kit and to open with emergency or user card..
  • RFID reader with capacitive keypad and backlighting LEDs (green/red/blue) for different warning signals: access authorized or denied, low battery level, etc.
  • Buzzer included for PIN confirmation and access denied.

Control Unit

  • Upgradeable firmware.
  • None-volatile memory.
  • 100 PINS per device. (4-6 digits)
  • 500 User cards per device.
  • Operating Modes:

 -- Standard: Default operating mode. Freewheeling handle until valid credential presented, then allows to open the door for 4-10 seconds.
-- Passage mode: Escutcheon is always in open mode (cofigured by zones or by authorized user after double badging or double PIN).


Battery Module

  • Easy battery change.
  • All Users (Cards and PINs) sign low batteries during the reading (red and green led blink). For very low batteries red and green led will blink alternatively but the escutcheon will not grant the access.
