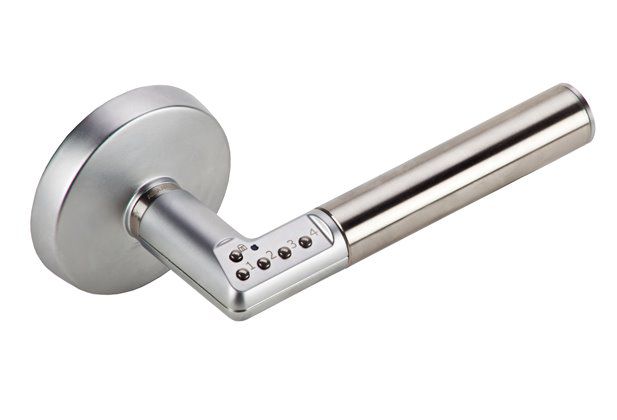

Code-Handle® 8816 (ANSI style)

Function

Access control via an automatic locking mechanism built within the handle that helps prevent unauthorized aces and is operated with personal code.

Applications
For interior use.

Features
Keyless locking
2 operating modes: Automatic locking; Manual locking
4-to 6-digit personal code for opening
Locks only from the door's exterior side
Simple operation
Easy installation (including retrofit)
Wire-free
Low-cost maintenance installation

Specifications
Max. door width 2 ¼" (57mm)
8mm spindle
Tubular latch adjustable backset 2 3/8" (60mm) to 2 ¾" (70mm)
Up to 9 distinct codes
Indication light
Indication sound
Battery: 2 x CR2 3V lithium
