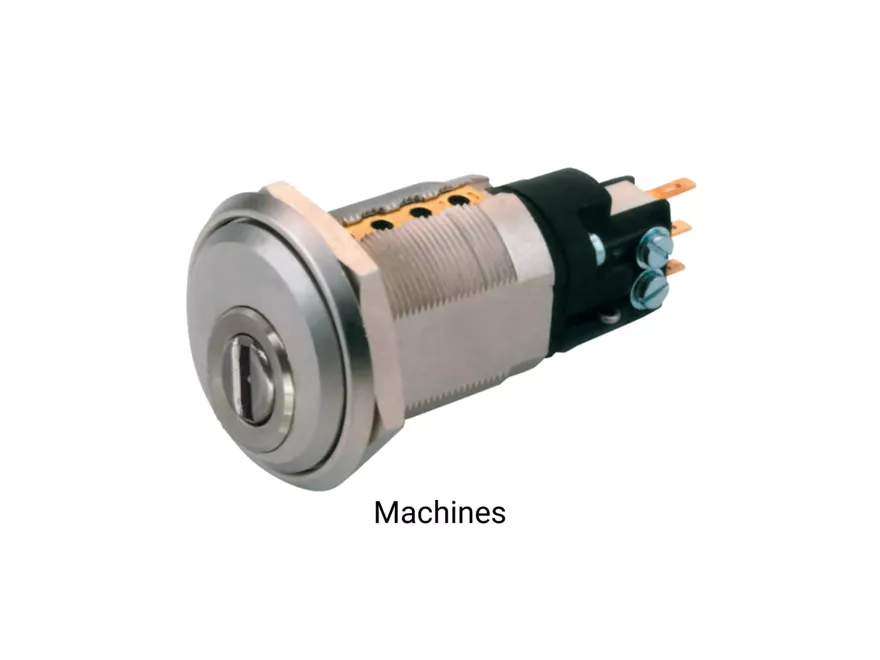

Switch Cylinder

Switching cylinders are mainly used for electrical equipment, switching systems or lift controls.

CLIQ hardware has different switch cylinder versions to suit various areas of application.

Image:

Secure almost any opening
Lock doors, cabinets, gates, machines, explosive environments and much more
Fit quickly and wire-free
Easy retrofitting without cabling or drilling: just swap mechanical for CLIQ cylinders
Operate with all CLIQ keys
More convenient for building users, facility managers and locksmith partners

Product description

Available as electronical version (V=)
Switch cylinder with one key withdrawal position at 0° and one scanning position at 60° (AUS=OFF)
Optionally with 2 key withdrawal positions at 0° and 60° (AUS=ON/OFF)
Brass cylinder housing components
Maintenance-free for up to 200,000 cycles
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Splash-proof IP54
Dust and rain cover available (SUR=1) IP55
Key rotation 60°
A rotation actuates a switch device (e.g. underground car parks, etc.).
One microswitch F4T6-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
Fixing with M19 x 1 x 5 housing nut

Scope of delivery

1 switch cylinder
1 housing nut M19 x 1 x 5
