CLIQ® Cylinder

The electromechanical CLIQ® cylinder is used in combination with the MTL™CLIQ® key enabling the collection and storage of information about when the cylinder has been accessed and with which key. In addition, the cylinder stores a list of authorized and unauthorized MTL™CLIQ® keys to ensure only enabled keys have access.

Applications

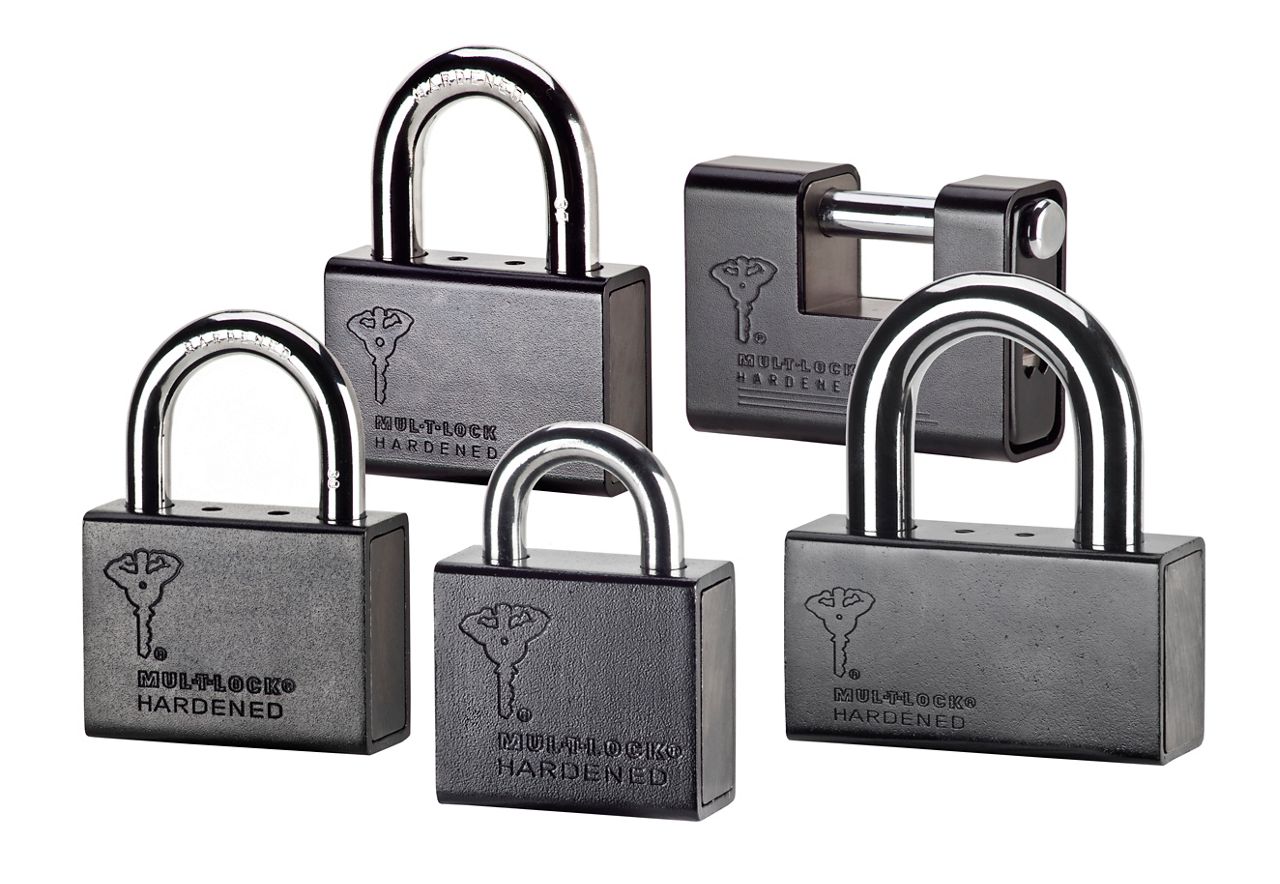

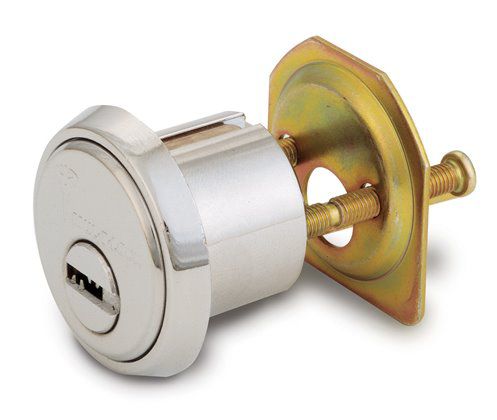

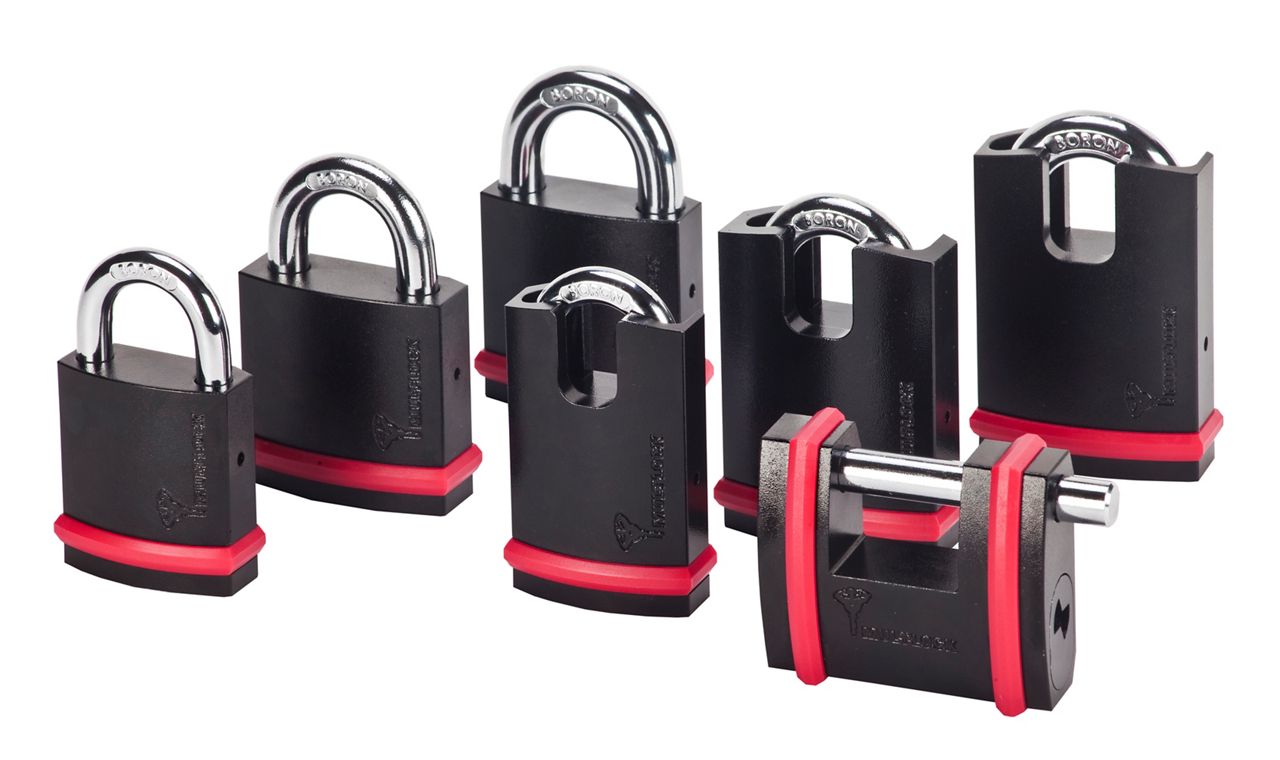

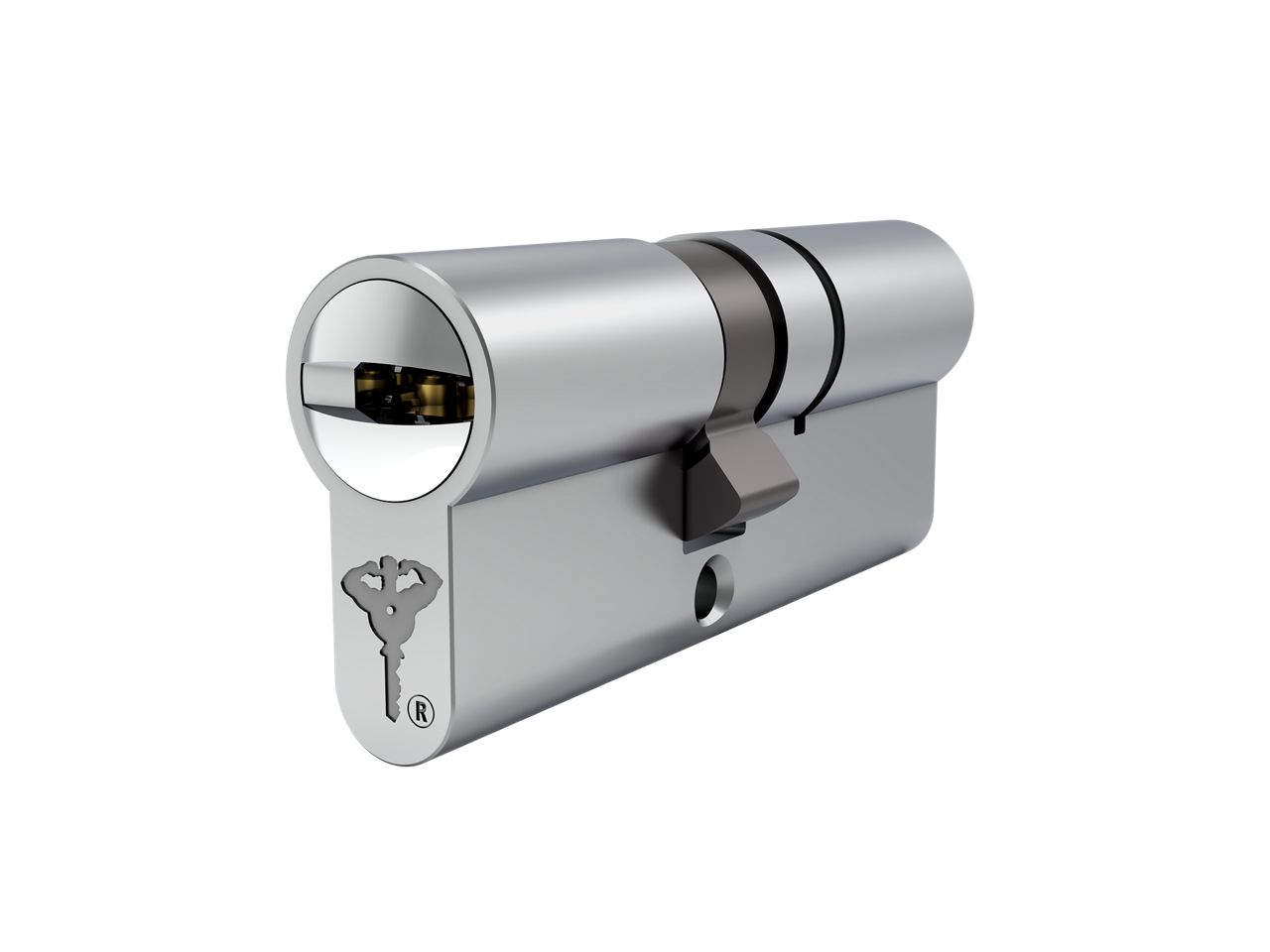

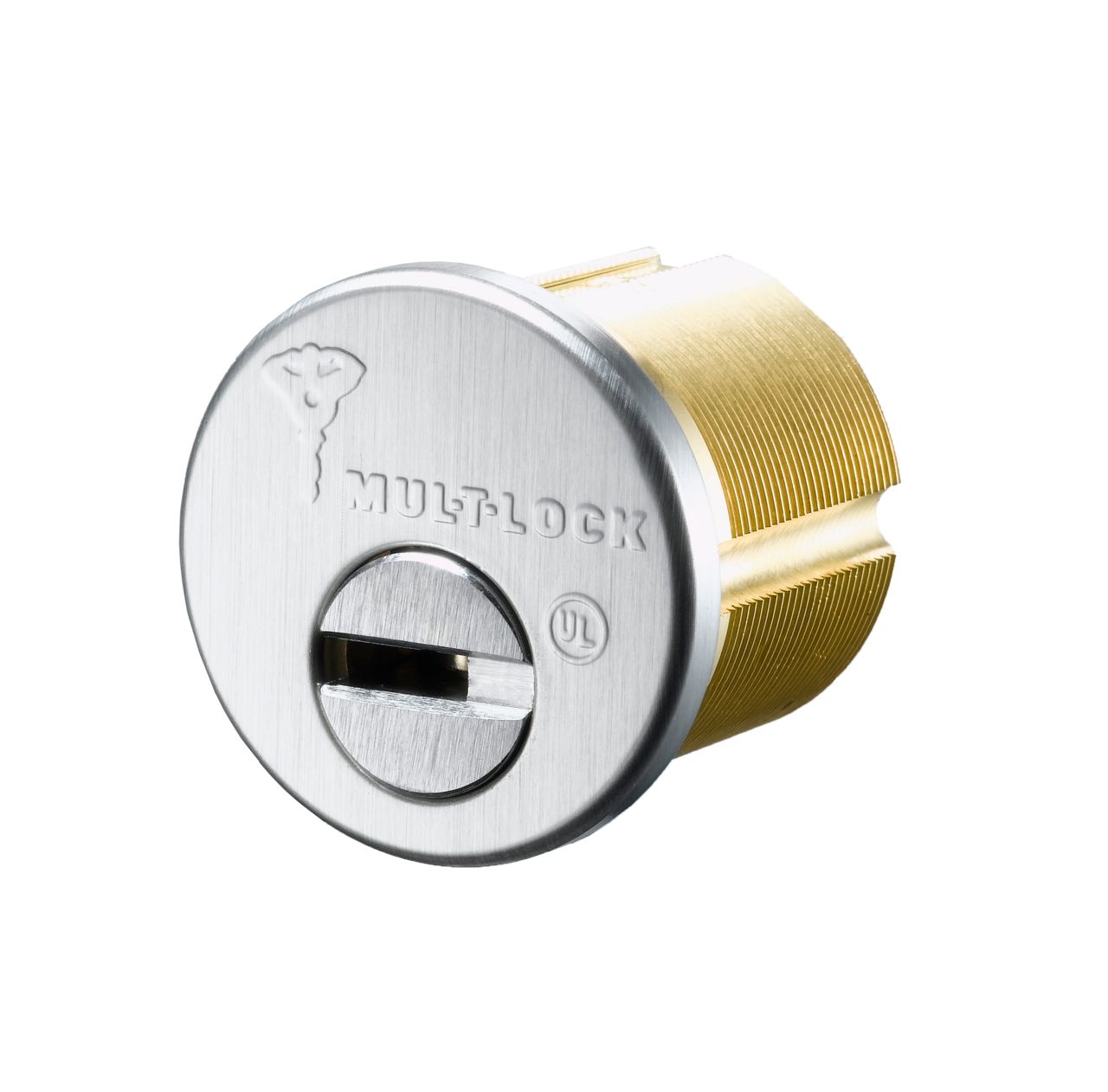

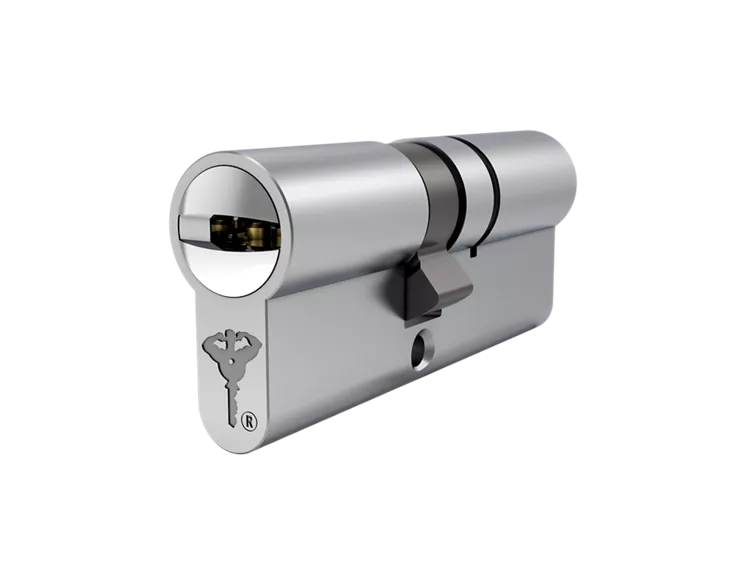

The CLIQ® cylinder is based on Mul-T-Lock's High-Security mechanical platforms MTL™600 and MTL™800. It is available in a wide range of cylinder applications including Euro (double or single), rim, mortise, Kik, padlocks, switch cylinder, and more.

Features

• Audit trail standard memory: 100 events
• Audit trail extended memory: 1000 events

Specifications

• IP54 (IPx8 with anti-water coating protection)
• Temperature range: -25°C - 85°C
• Encrypted (3DES) communication between cylinder and key/c-key
• Available in a variety of finishes
• Minimum length: 33 mm (Euro model)
• Power supplied via the MTL™CLIQ® key's embedded battery
