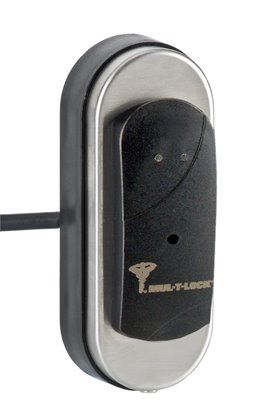

SMARTair® Narrow Wall Reader
Function
The SMARTair Wall Reader is a unique and elegant access control solution designed for simple installation and operation.
The Wall Reader operates magnet locks, electric strike or electronic locks.
All the control elements are on the inside of the door to enhance security.
Applications
Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.
Management options*
Standalone; Offline; Update-On-Card (UOC)
* Products are upgradable from Standalone to Offline/ Update-On-Card (UOC)
Features
Simple installation
Simple operation
System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail; Temporary blockage; 3 operation modes - Standard, Open, First person in
Scales up to 64,000 user cards and up to 64,000 doors per system
Specifications
13.56 MHz, MIFARE® DESFire technology
Contactless cards/tags
2-4 cm read/write distance
Temperature range: -10°C to 80°C
12V AC/DC power
Consumption: Relay not active - 20µA; Relay active - 150mA
Relay: NO, NC, C
