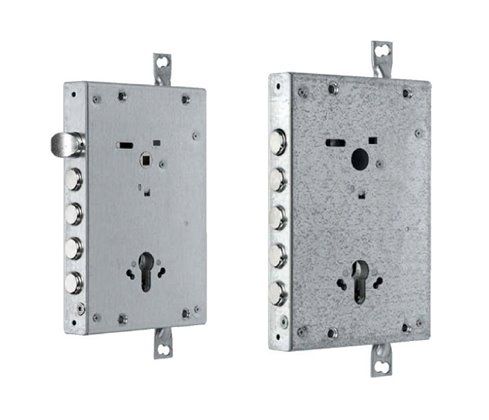

Single Locking Mechanism

Application
A heavy duty multipoint lock for armored doors.

Operation
Operated by Euro profile cylinder
When lock is closed, latch can not be withdrawn using the handle

Features
3-point lock
Gear-based mechanism
Latch functionality
Right- or left-hand installation

Options
4 bolts (Ø18 mm) for standard 28 mm bolt spacing (A)
3 bolts for 37 mm bolt spacing (A)

Specifications
Handle operation
Latch: Ø20 mm
Backset: 65 mm
Bolt throw: 30 mm
Lever stroke: 20 mm
Bolt protrusion: 3,13 mm (B)
Variety of key lenghts

Notes
For ordering information see the Mul-T-Lock Italy Catalogue.
