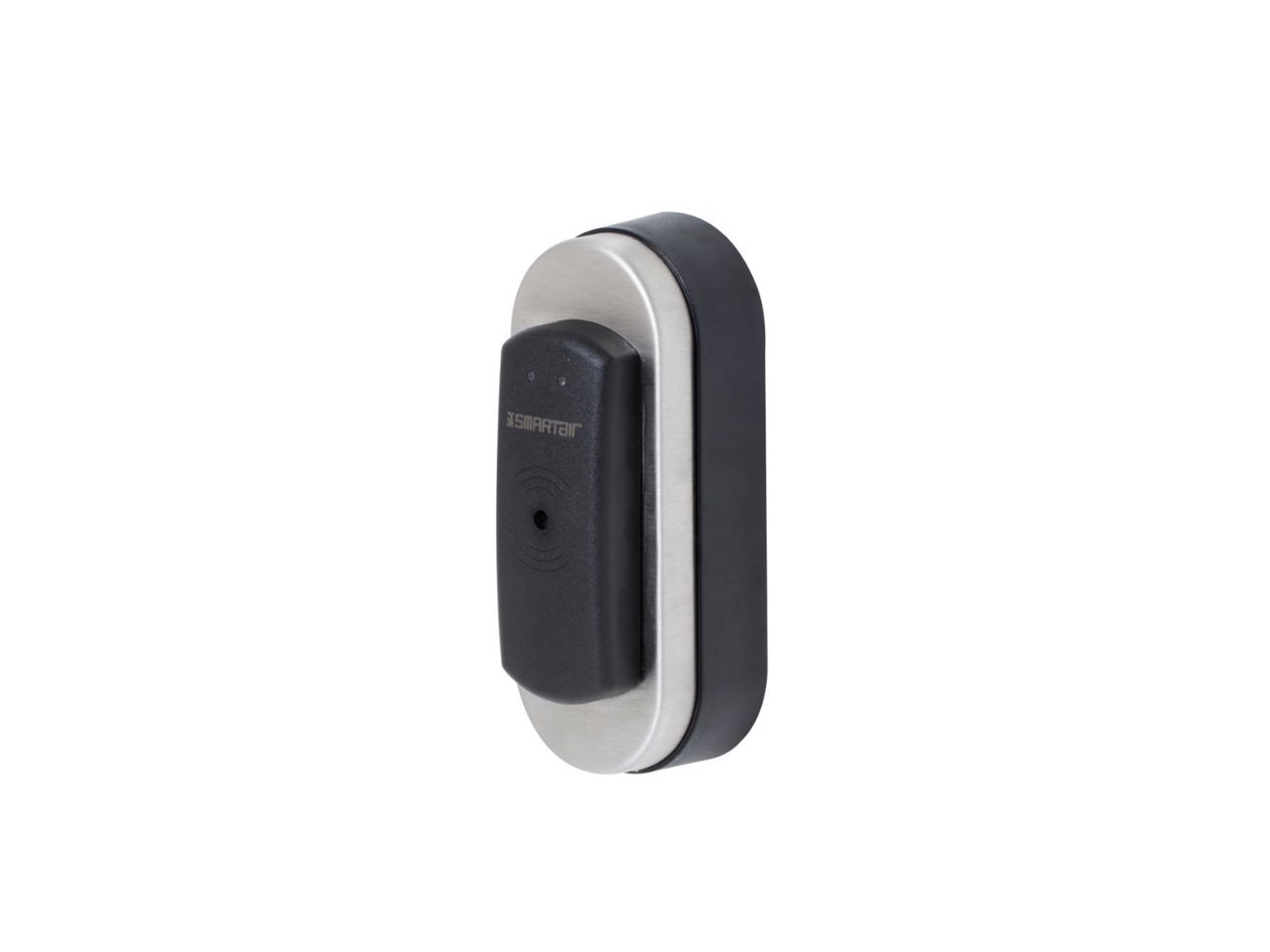

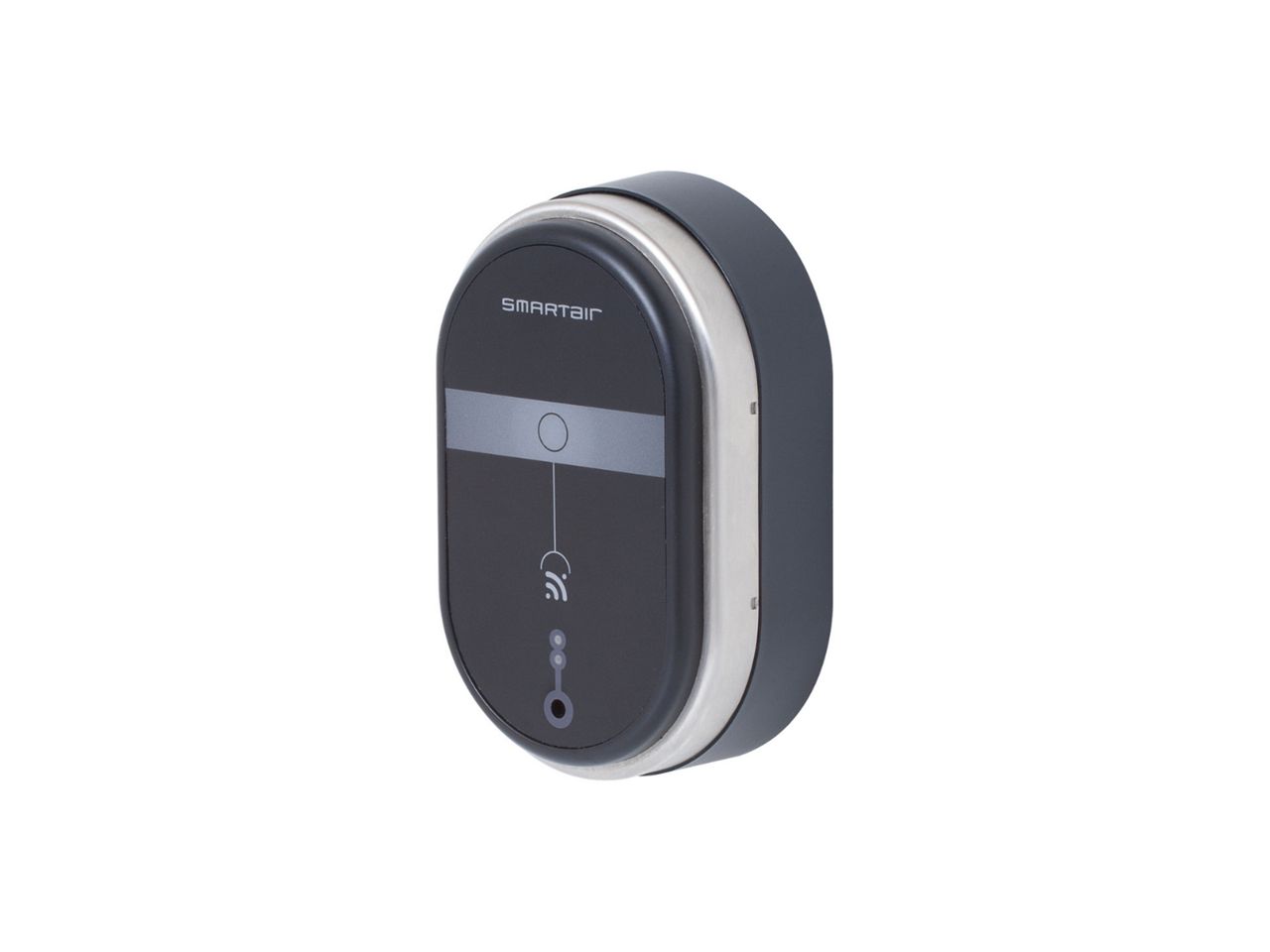

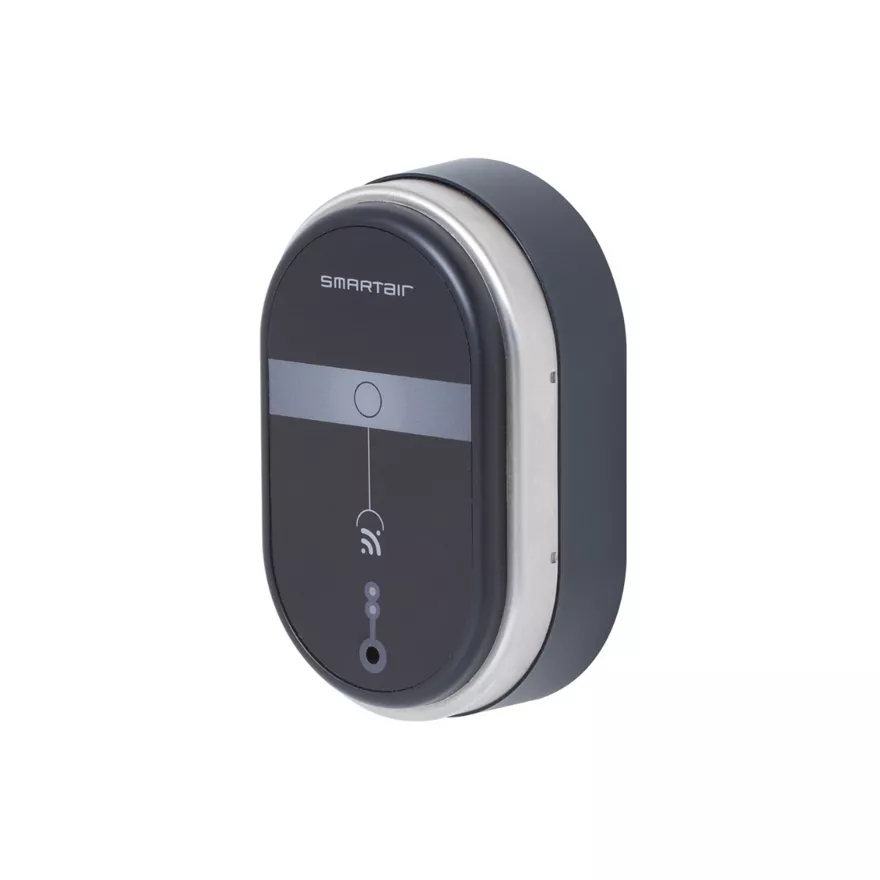

SMARTair® Wall Readers

Function

The SMARTair Wall Reader is a unique and elegant access control solution designed for simple installation and operation.

The Wall Reader operates magnet locks, electric strike or electronic locks. All the control elements are on the inside of the door to enhance security.

Applications

Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.

Management options*

Standalone; Offline; Update-On-Card (UOC); Wireless

* Products are upgradable from Standalone to Wireless

Features

Simple installation

Simple operation

4-digit code

System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail; Temporary blockage; 4 operation modes - Standard, Open, First person in, Dual user (available only in the wireless version)

Scales up to 64,000 user cards and up to 64,000 doors per system

Specifications

13.56 MHz, MIFARE® DESFire or iClass technology
Contactless cards/tags
2-4 cm read/write distance
Temperature range: -10°C to 80°C
12V AC/DC power
Consumption: Relay not active - 20µA; Relay active - 150mA
Relay: NO, NC, C
Wireless frequency: 868MHz or 915 MHz

Options

With or without keypad (with keypad is not available as Standalone): RFID only; RFID and code; Code only





Image:

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Door profiles

Suitable for wooden, narrow or glass doors

  Traffic volume

Medium to high



  Exterior usage

IP56 (Extreme version) Up to 85% humidity. -20°C to + 70°C



  Hardware compatibility and installation

High retrofit (compatible with most common mortise locks)

Drilling, no cabling

Doors from 30mm up to 120mm (thicker doors may be possible on demand)



  Power supply

 Battery (from 75.000 to 105.000 cycles)* max. 2 years standby**

Type of batteries: 3 LR03 AAA 1.5V alkaline batteries



  Multiauthentication

Yes



  Status information

Handle usage (only Wireless Online system)

Thumb turn use: only in privacy model

Door position: door sensor not included NO (normally open) connection

Override cylinder (in combination with special mortise lock)



  Certifications

CE (EMC, R&TTE)

ROHS, REACH, WEE

EN1634 (Fire)



  RFID technologies

HID iCLASS®

MIFARE Classic and Ultralight

SKIDATA

DESFire



  Compatible mobile solutions

Openow (Offline and Wireless Online management systems)

TESA SMARTair (Remote opening app)



  System management upgradability

SMARTair escutcheons can be upgradeable from Standalone >

Offline / Update On Card >

Wireless Online by:

  • Adding RF module
  • Firmware upgrade
  • Change of internal cover (plastic top)
